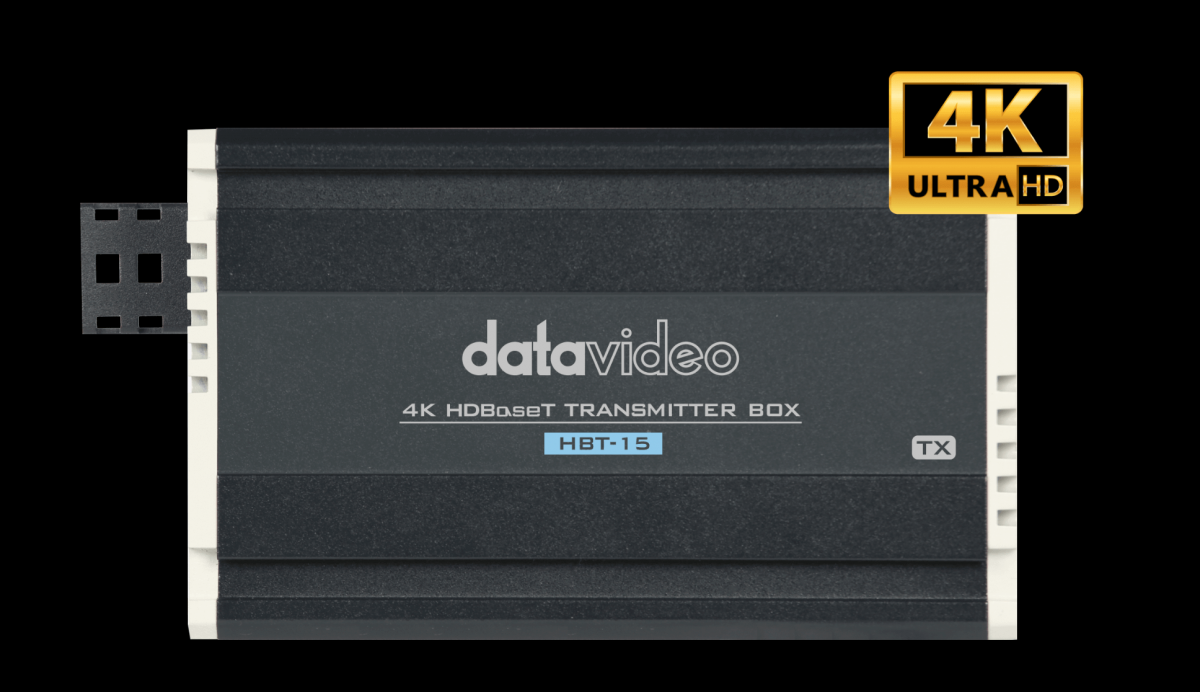

HBT-15

4K HDBaseT Transmitter Box
HDBaseT
USD $649.00
HDBaseT

4K HDBaseT Transmitter Box

HBT-15
USD $649.00
HDBaseT

Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable

The HBT-15 is an HDBaseT Transmitter designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.

Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.

The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

HBT-15
HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.

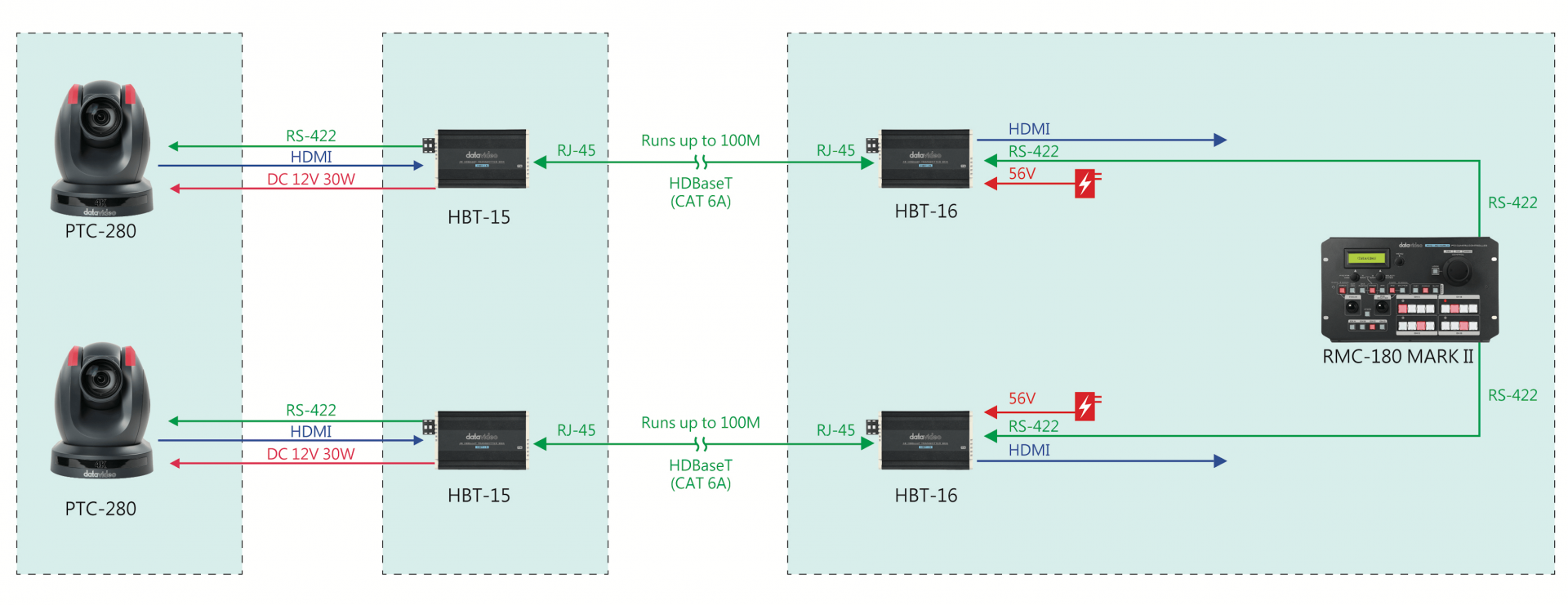

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter.

HBT-15 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE+), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

HDCP
Support DVIP, RS-422, and RS-232 control protocols.

Support DVIP, RS-422, and RS-232 control protocols.

HBT-15 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

EDID

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

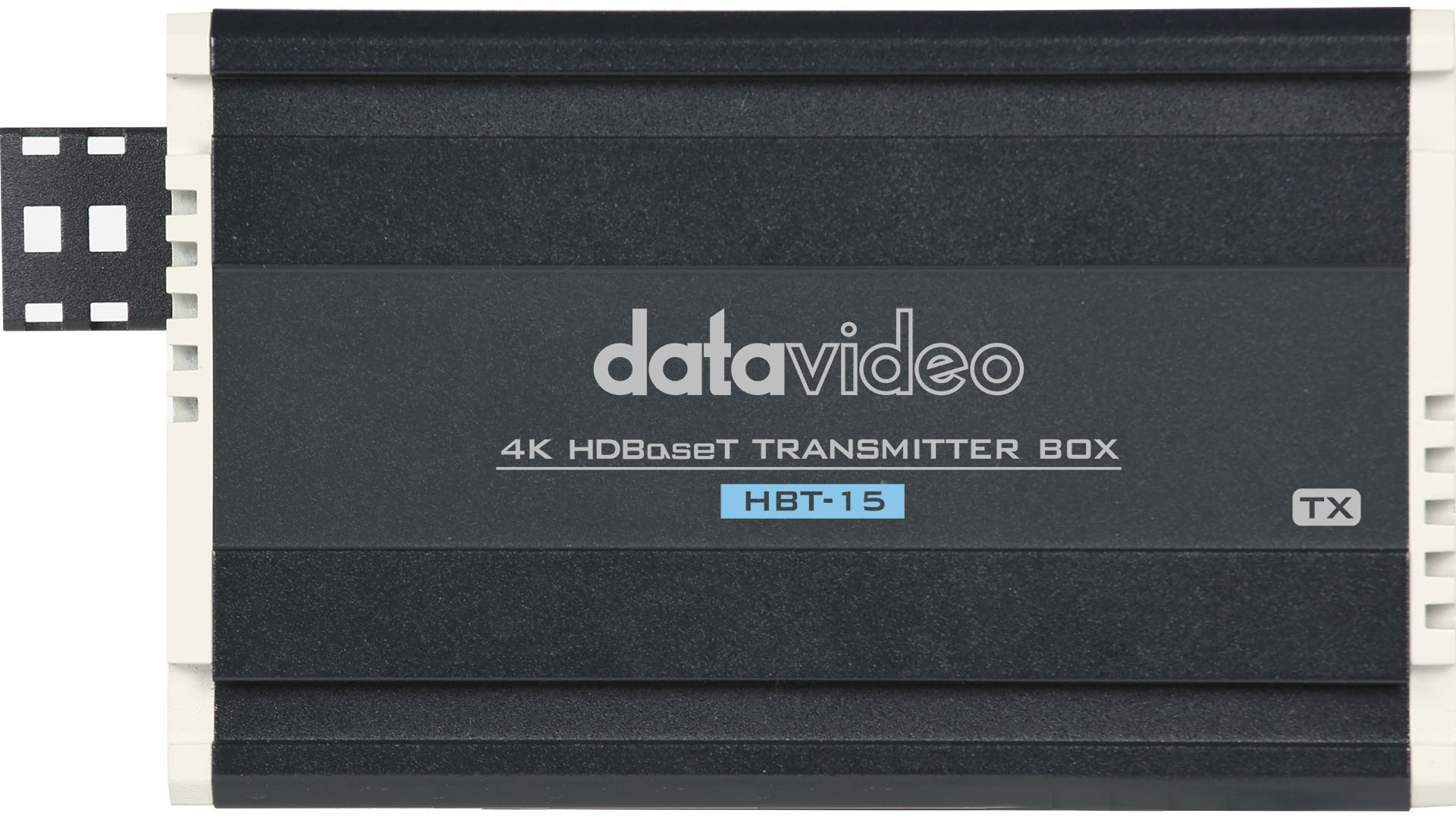

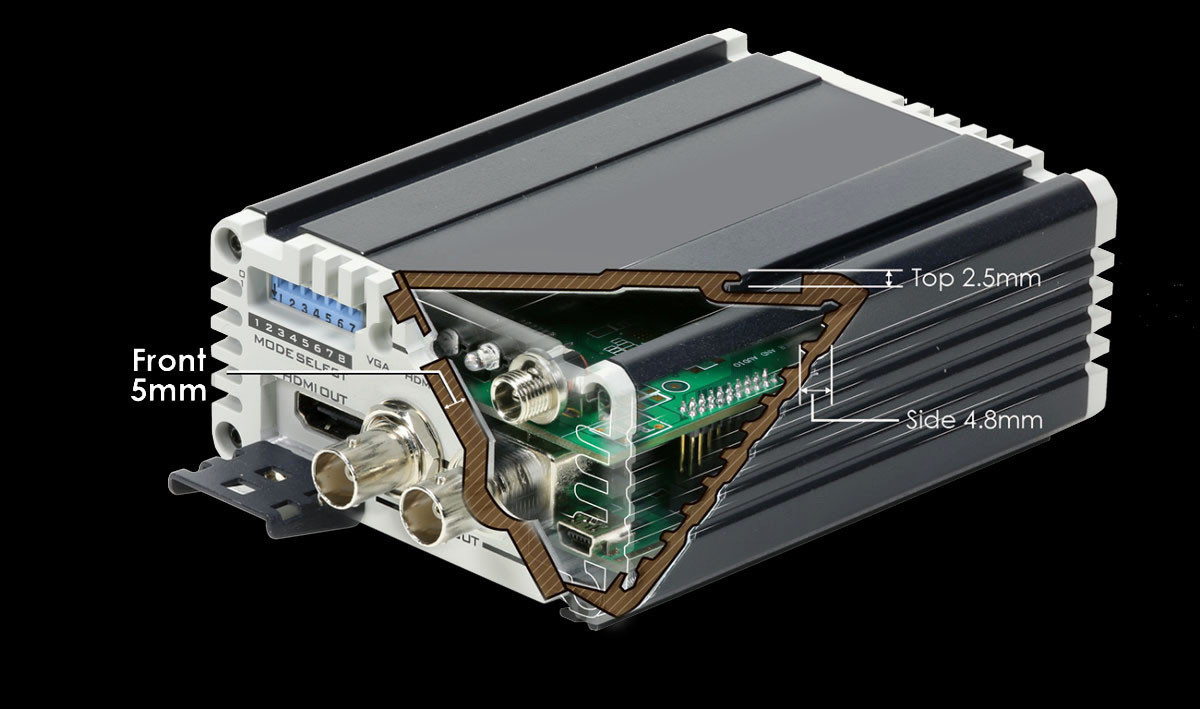

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-15 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Aluminum Alloy and Heavy Duty Design

What is HDBaseT ?

HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!

Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflows benefits that HDBaseT technology offers.

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

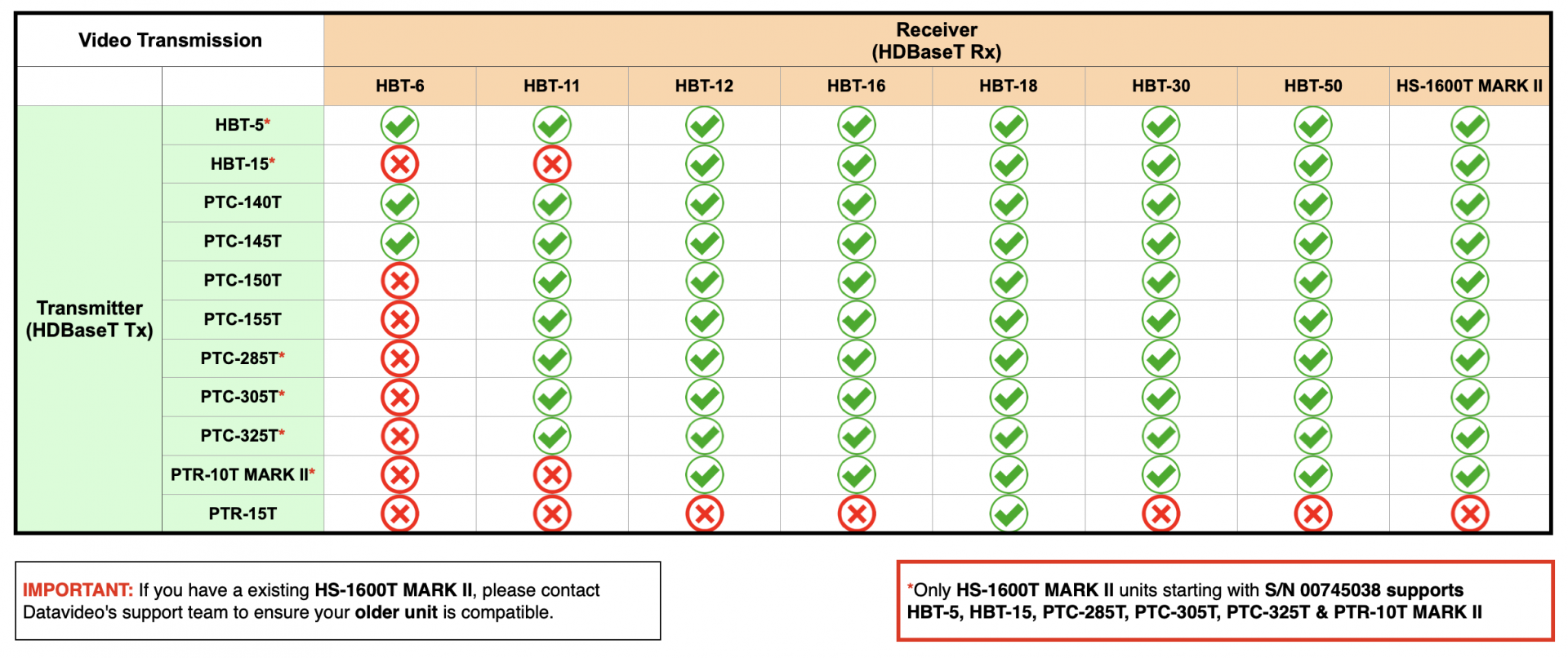

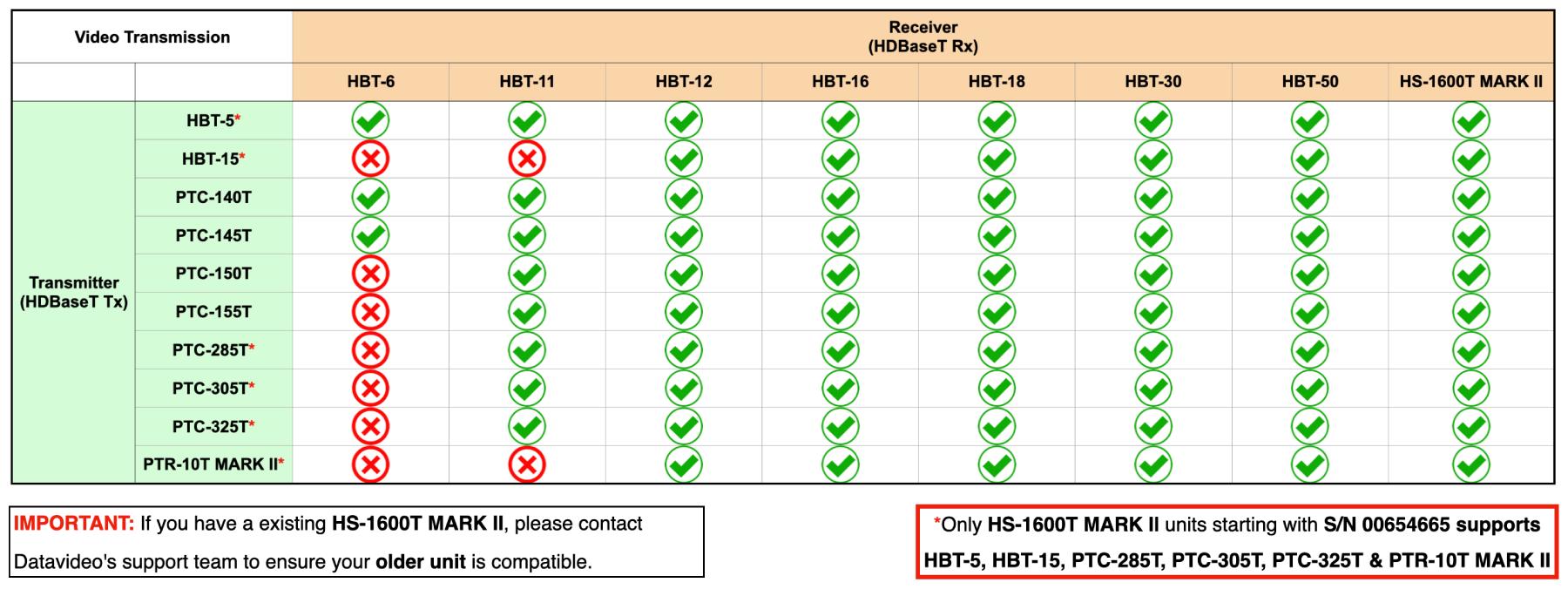

HDBaseT Compatibility List


The chart above shows the product's direct compatibility with other HDBaseT products.

Where to Buy?

   Find an authorized reseller

4K HDBaseT Transmitter Box

COMPARE MORE PRODUCTS
Model Number
HBT-15
Video/Audio Input
HDMI 2.0 x1
Video/Audio Output
HDBaseT RJ-45 x1
Supported Video Format
2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process
4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth
Single-link 600MHz [18Gbps]
DVIP
RJ-45 x1(output)
RS-422/ RS-232
RJ-45 x1
Power
DC Out: 12V 30W
PoE Output
---
HDBaseT Distance
2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance
HDMI 2.0
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround sound (up to 7.1ch)
Dimension (LxWxH)
157 x 85 x 46mm
Weight
474 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-15 main unit
1 x DC to DC cable
