HBT-5

HDBaseT Transmitter Box
HDBaseT
USD $259.00
HDBaseT

HDBaseT Transmitter Box

HBT-5
USD $259.00
HDBaseT

Supports HDMI Deep Color & full 3D & 4K@30

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.
HDMI Deep Color supports better color depths
Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter

HBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.
Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter
HDCP compliant

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Supports control over RS-232/ RS-422

HBT-5 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports control over RS-232/ RS-422
Supports default EDID and EDID learning from the display

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Dolby TrueHD & DTS Master audio support

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

HDBaseT Certified List of Cables

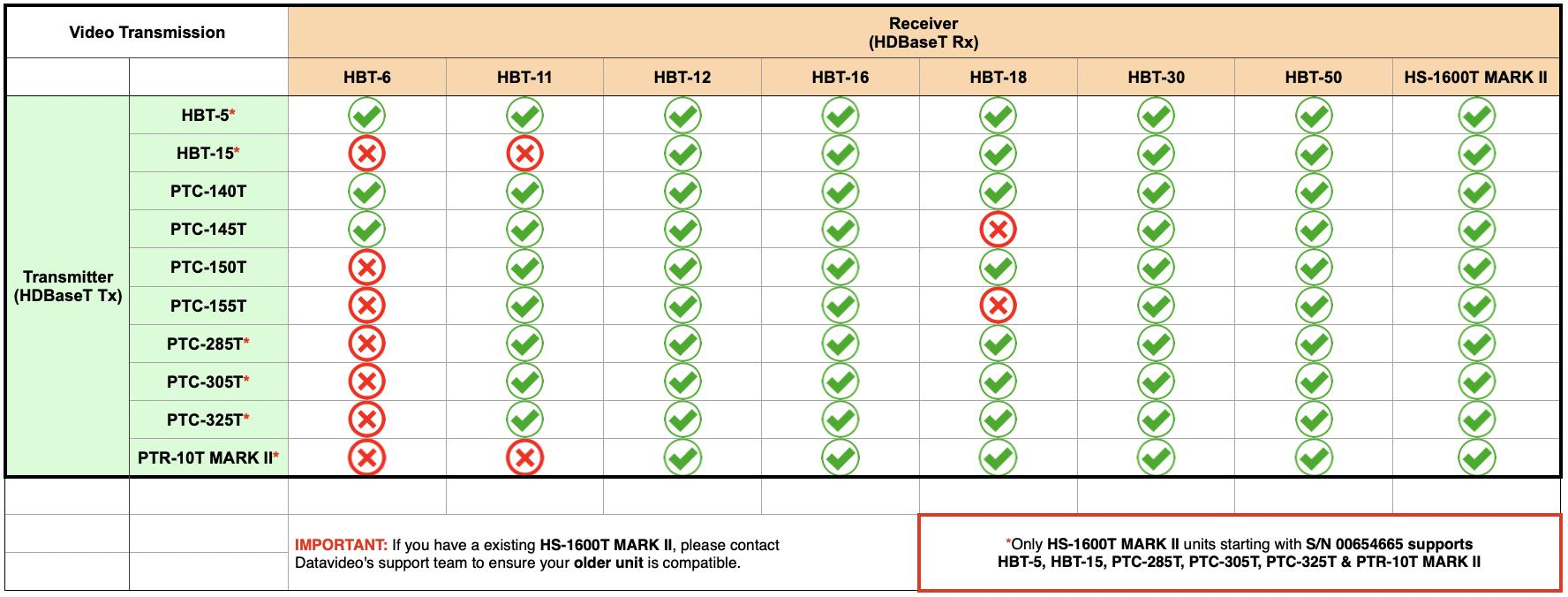

HDBaseT Compatibility List

The chart above shows the product's direct compatibility with other HDBaseT products.

Where to Buy?

   Find an authorized reseller

HDBaseT Transmitter Box

COMPARE MORE PRODUCTS
Model Number
HBT-5
Video/Audio Input
HDMI x1
Video/Audio Output
HDBaseT RJ-45 x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process
4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth
Single-link 340MHz [10.2Gbps]
DVIP
---
RS-422/ RS-232
YES
Power
DC Out: 12V 24W
PoE Output
---
HDBaseT Distance
1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance
HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance
HDCP 2.2/1.4
Audio support
Surround sound [up to 7.1ch) or
stereo digital audio
Dimension (LxWxH)
88 x 76 x 30 mm
Weight
151 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-5 main unit
1 x DC to DC cable
2 x Screw
