HBT-12

HDBaseT Receiver Box
HDBaseT
USD $499.00
HDBaseT

HDBaseT Receiver Box

HBT-12
USD $499.00
HDBaseT

Long distance 4K solution and carry everything in one ethernet cable

The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.

With the 56V power connected to one end of the HBT-12 HDBaseT receiver

The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).

POE++

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.

Extends video transmission to 120m.

Support DVIP, RS-422, and RS-232 control protocols.


Long distance 4K solution

Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.

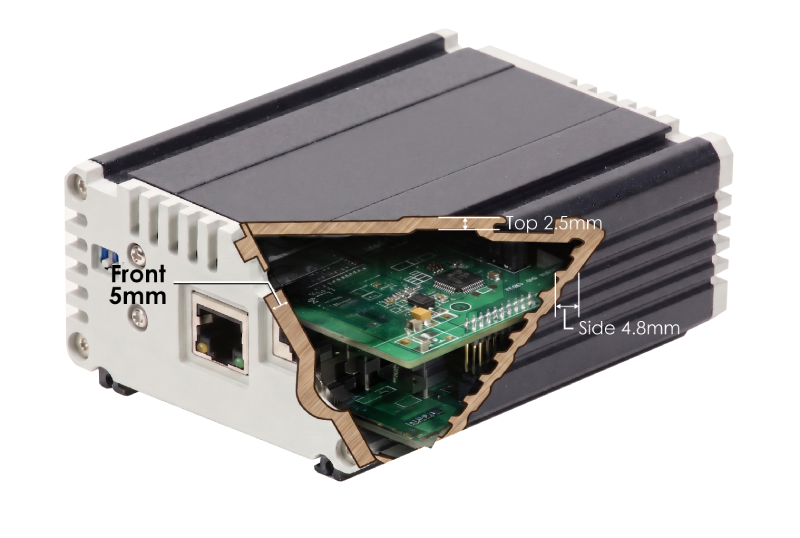

Aluminum Alloy and Heavy Duty Design

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-12 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

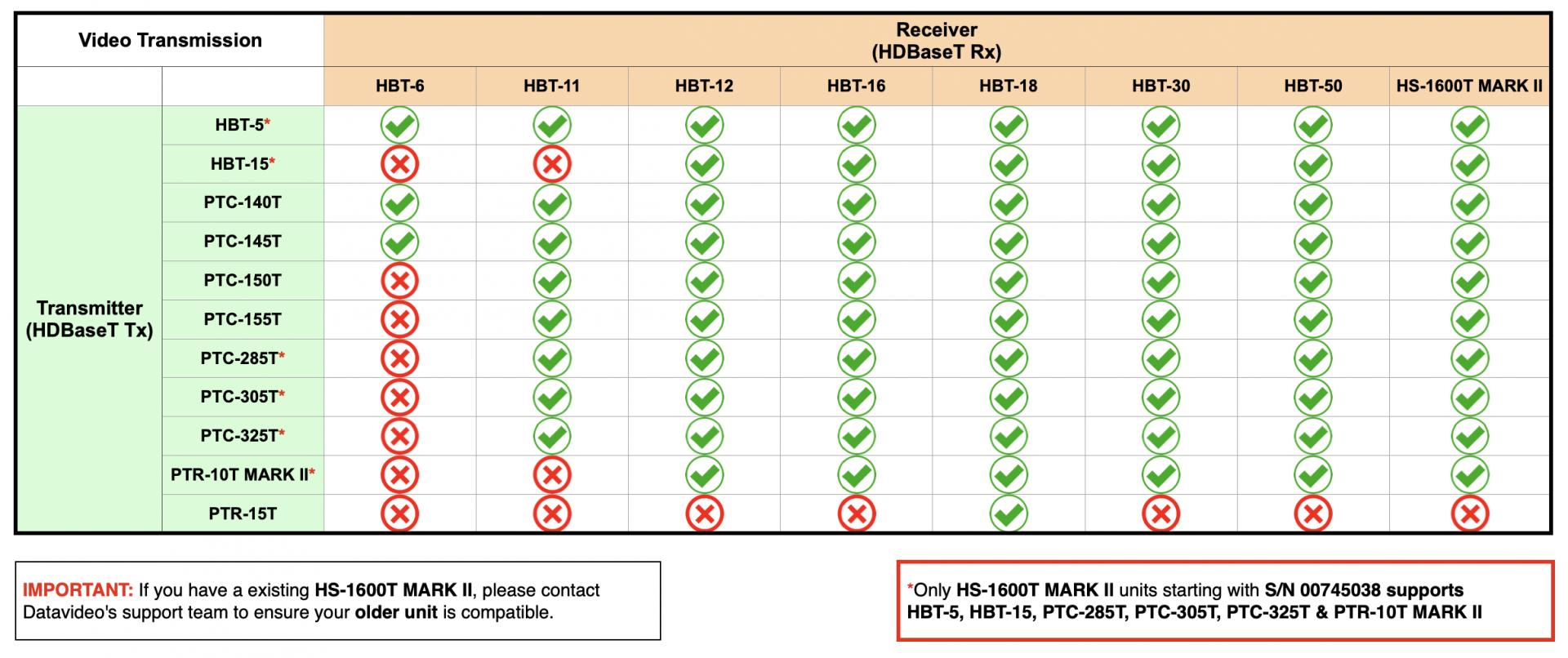

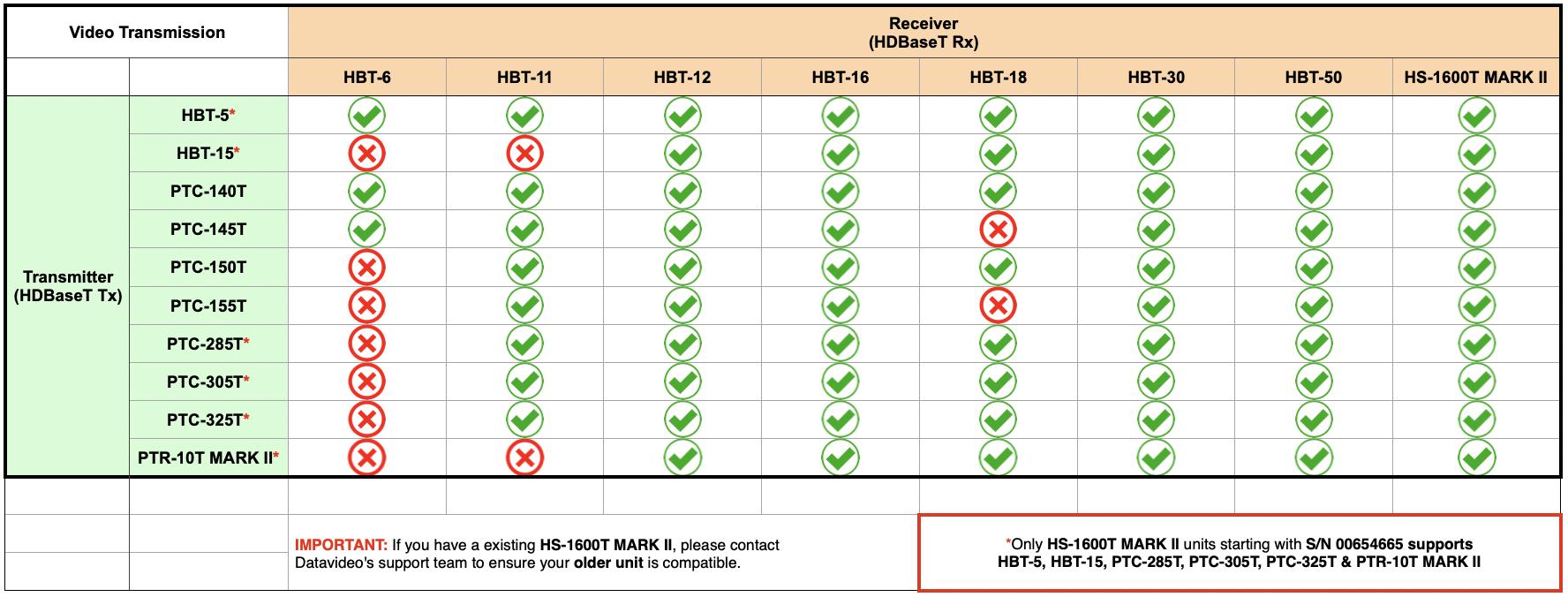

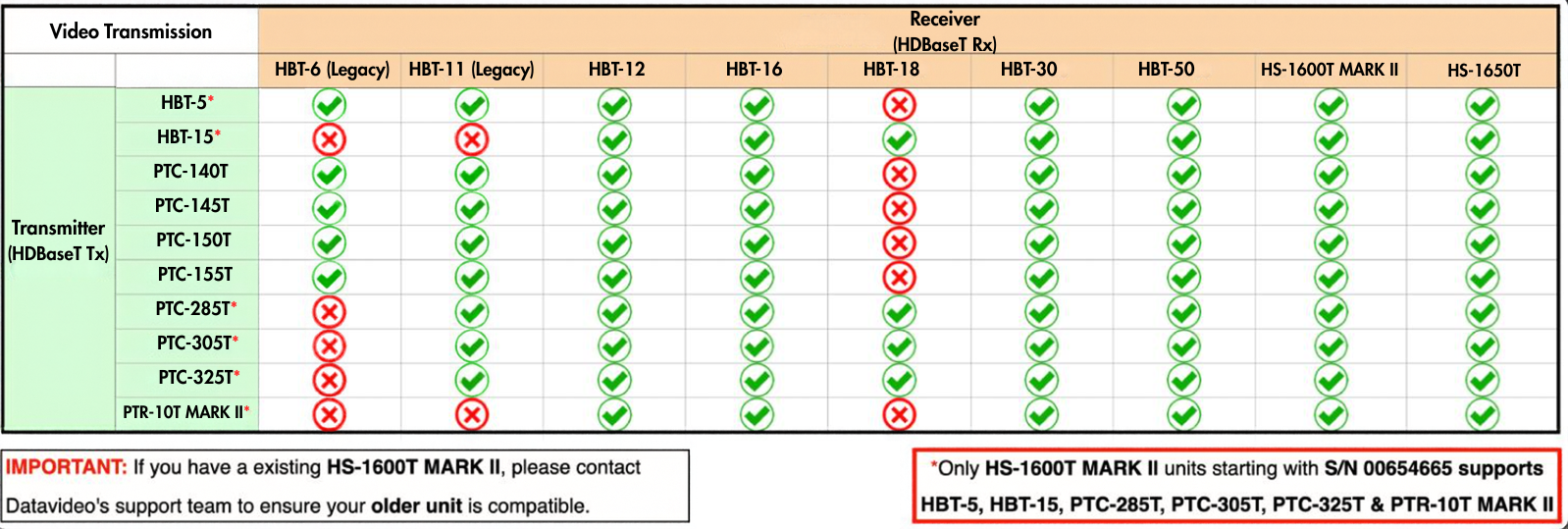

HDBaseT Compatibility List

The chart above shows the product's direct compatibility with other HDBaseT products.

What is HDBaseT ?

HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!

Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

HDBaseT Certified List of Cables

NEED MORE HELP?

   Contact us to get more help!

HDBaseT Receiver Box

COMPARE MORE PRODUCTS
Model Number
HBT-12
Video/Audio Input
HDBaseT RJ-45 x1
Video/Audio Output
HDMI x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Process
---
Video bandwidth
---
DVIP
RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x1(input)
Power
DC IN: DC 56V
PoE Output
65W
HDBaseT Distance
1080p@60 100m by CAT.7 cable
4K2K@30 70m by CAT.7 cable
HDMI compliance
---
HDCP compliance
---
Audio support
---
Dimension (LxWxH)
132 x 85 x 45 mm
Weight
400 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-12 main uni
1 x AC cord
1 x DC 56V power adaptor
