iCAST mini

4K Dual Channel Presentation Switcher
Coming Soon
USD $1,699.00
Switchers

4K Dual Channel Presentation Switcher

iCAST mini
USD $1,699.00
Coming Soon

Improve the Quality of Your Online Presentations!

Datavideo's iCAST mini is a multimedia device designed for single-operator applications.

From small scale corporate training sessions to mid-sized hybrid classrooms or conference halls, the iCAST mini is the perfect fit for your online presentation needs. With the one-button-one-function feature on a unique and easy to use touch panel control, even novice users will be able to operate this device.

You don't need to learn complicated technologies about video production or hire a professional production team. You can take control of your own presentations with the iCAST mini. Simply connect the power and the video sources, then leave the rest to the iCAST mini.

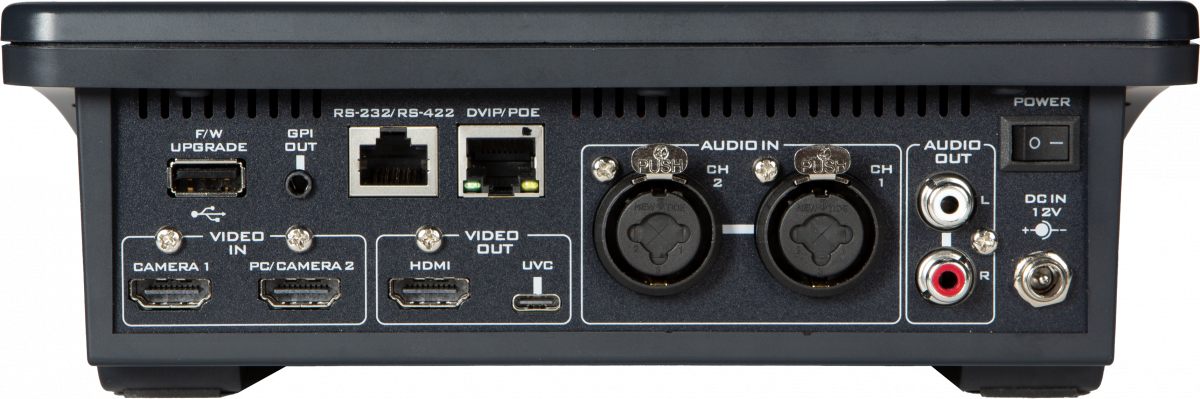

Rear Panel


One USB Type C Cable to Merge Online and Offline Teaching

The most used platforms for hybrid classrooms are ZOOM, Microsoft Teams, and Google Meet.

Without changing the current classroom setting, the iCAST mini can deliver video and audio to any video conferencing platforms via the UVC interface with a USB type C cable. You don't need to install drivers or perform any configuration.

Graphical User Interface on Touch Panel

An intuitive graphical user interface on a 7-inch touch panel with an anti-fingerprint protection provides you with a clear view from any angle.


Videos and PIP Mode

Switch rapidly between your presentation and the camera input or overlay a PIP window on the program video. You can also swap between the program out video and the PIP image, thereby enhancing the quality of your presentation.


Images for Key Icons for Easier Identification

Using a real image as your key icon allows you to easily identify the camera view that is saved in the key. You can capture camera images and save them as thumbnails which are in turn applied to icons of shortcut keys on the Home screen, simply pressing the thumbnail will send the PTZ camera to the pre-saved position.

Graphic Icons for Keys to Simplify Workflow

In addition to image keys, you can use the device's built-in graphical. Icons for better identification. We've pre-loaded hundreds of these icons on the device for intuitive operation.


Image Key + Graphic Key

Graphical icons can co-exist with the image icons. They not only simplify your workflow but make operation faster and easier.

Direct Access to Auto Tracking Features

Gain immediate access to the auto tracking feature using a range of external controllers.

Beyond traditional camera controls, activating auto tracking on SHOWCAST 100 is also straightforward and convenient.


Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side

The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.


Quick Access to Framing Options

All of the PTC-285 camera series include RMC-1AT controller. User can quickly select full-body , half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Custom AI Object Tracking

If you are filming multiple people, you can designate a person for Auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.


You Need a Camera that Understands Your Needs

Auto Tracking Mode

Automate your presentation with Datavideo's PTC-145 (HD) or PTC-285 (4K UHD).
Smart Auto Tracking PTZ cameras. Your only responsibility is to create a presentation, the PTC-145/285 will capture desired images with its advanced auto tracking function.


PTZ Cameras with Auto Tracking

Datavideo's PTC-145/285 Smart PTZ cameras allow you to switch between full body, half body and close up shots. Once the smart tracking function takes over, the camera will be able to more precisely determine the appropriate shots for your video production job.


Using Non-PTZ Cameras

When using the iCAST mini with Datavideo's BC-15P or other non PTZ cameras, you can hide the camera presets on the UI and simply display panes that allow you to switch between camera images and presentation contents which can be swapped with PIP images. In this way, the keys are enlarged to facilitate operations.

About Auto Tracking PTZ Cameras

In addition to iCAST Mini, Datavideo also provides various devices that offer different degrees of control over our auto tracking on cameras. If you need to rapidly enable/disable the smart camera's auto tracking function, you can use the supplied RMC-1 remote control, RMC-300A controller, RMC-180 MARK II controller with an RS-422 interface, PTC View Assist, or TPC-700. If you would like to use a controller with a video switching function, available choices are KMU-200, SHOWCAST 100 and iCAST mini.


Pan, Tilt and Zoom the Smart Camera

In order to provide smooth lens movement, Datavideo In order to provide smooth lens movement, Datavideo has designed a professional AI algorithm that smoothly accelerates and decelerates the lens, determines the most appropriate lens track, and avoids sudden halts upon direction reversal, ultimately bringing you professional production results.

Camera Control

Using an Ethernet cable, you will be able to control Datavideo's PTC camera series via the RS-232/422 or DVIP interface, such as pan and tilt settings, image size, brightness, contrast, etc, making sure that the cameras always generate high quality images.


Adjustment of hite balance, focus, iris and shutter

Camera Control

Four camera presets

PIP

Set the PIP window's size and position

Set the PIP window's border color

Set the PIP window's border size


Volume Control

Audio is an integral part of any production, and iCAST mini is packed with powerful audio features. Audio mixing, mic input format setting and audio-to-video synchronization ensure your audio needs are covered.


Audio Mixer

The audio mixer allows you adjust audio levels and synchronize audio from multiple multimedia sources. With the configurable channel type, you can set the audio channel to either stereo or mono for a more balanced MIC input. You can also synchronize live video and audio with the built-in audio delay function.

Single Operator Hybrid Event Solution Course

Explore our exclusive course on the Datavideo Academy website, covering essential aspects of setting up a seamless hybrid production environment. Learn hardware connections, software settings for key devices, troubleshooting techniques, and equipment operation. Gain the skills to navigate various scenarios in hybrid events, from presentations to lectures. Equip yourself with the knowledge needed for successful setups using core components like the iCAST mini 4K touch screen switcher and PTC camera. Visit Datavideo Academy today for a comprehensive learning experience, and master the art of hybrid event production.

Tutorial Videos Created Specifically for the iCast Mini

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the iCast Mini is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

NEED MORE HELP?

   Contact us to get more help!

4K Dual Channel Presentation Switcher

COMPARE MORE PRODUCTS
Model Number
iCAST mini
Video Standard
4K & HD
Video Format
Input:
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL

Output:
HDMI
3840x2160p: 30/29.97/25
1080p: 60/59.94/50/30/29.97/25/24/23.98
UVC
3840x2160p: 30/29.97/25
1080p60/59.94/50/30/29.97/25
720p60/59.94/50
Video Processing
4K, 2K/30 4:4:4, 8bit
Input Routable / Crosspoint
N/A
Video Input
2 x HDMI 1.4
Mix HD & SD Source
N/A
Computer Graphic Interface
2 via HDMI
Video Output
1 x HDMI 1.4
1 x USB 3.0 Type C (UVC)
Down-converted Output
Yes
Built-in Multi-view Monitoring Out
N/A
Analogue Audio Input
2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket
Analogue Audio Output
1 x Stereo RCA set (L/R)
1 x Stereo headphone
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
Up to 170ms
A+V Switching
Yes
Chromakey
N/A
Title Creator
N/A
USK
N/A
DSK
N/A
Picture in Picture
1
Logo Insertion
N/A
Still Store
N/A
Effects
Cut
Transition Preview
N/A
Sync / Reference In/Out
N/A
Tally Output
N/A
PC Remote Control
N/A
Camera Control
DVIP/ RS-422/ RS-232
Built-in Audio Mixer
Yes
Storage
N/A
Recording File System
N/A
Recording File Format
N/A
Video Encode
N/A
Audio Encode
N/A
Streaming Protocol
N/A
Firmware Update
USB
Special Features
7" Touchscreen Display
Chassis
Unibody
Dimension (LxWxH)
220 x 154 x 75mm
Weight
1.1 kg
Power
DC 12V 18.7W
Operating Temp. Range
0~40 °C
What's in the Box
1 x iCast MINI product
1 x AD Switch DC 12V with AC Cord
