PD-4A
Redundant Power Center
EUR €1,845.00
Power Distribution
Redundant Power Center
PD-4A
EUR €1,845.00
Datavideo
Product Categories
Power Distribution
Redundant Power Center
Features
Media
Workflow
Specs
Related Product
Accessories
Downloads

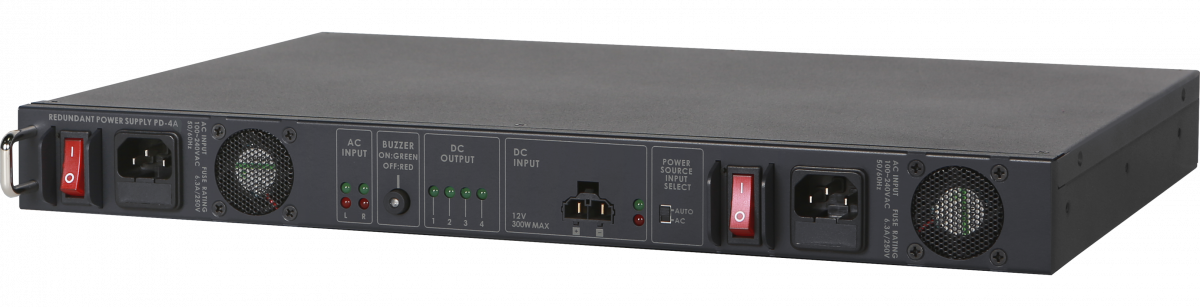

Supply energy even if one power source fails

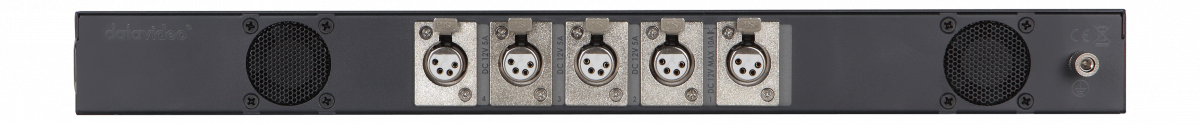

Output : 3 x 5A + 2 x 10A 12V XLR DC Female

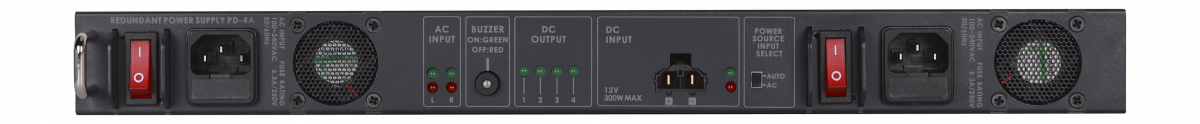

Built-in time delay power-on control to initiate each DC output terminal
Ideal for any installed or Mobile Studio
PRODUCT MEDIA
PRODUCT WORKFLOW
Redundant Power Center
COMPARE MORE PRODUCTS
Model Number
PD-4A
AC Input
100~240 VAC (50Hz or 60Hz)
AC input outlet: Two AC inputs & Two Power Switches
DC Backup Input
One DC 12V/25A
supports non-regulated DC 12V output
DC Output
5
12V±5%, 5A XLR DC Female Jack x3
12V±5%, 10A XLR DC Female Jack x1
(share of two XLR DC Jack)
Max. Power Rating
360W
DC Overload
DC overload protection, auto-recovery
fuses on each DC output terminal
AC Overload
non-recovery fuse on the AC input outlet
LED Indicator
Green LED: Unit under working condition
Red twinkle: AC Input failed
1~4 XLR DC outputs LED indicator
Power Source Input Select AUTO/AC
Selectable of Auto/AC input switch
Dimension (LxWxH)
484 x 300 x 49 mm
Weight
6.1 kg
Power
AC 100-240 VAC
DC 12V 300W
Operating Temp. Range
0~40 °C
What's in the Box
1 x PD-4A product
1 x AC CORD
DOWNLOAD
RELATED PRODUCTS
Learn more about the related products
PD-2A
Power Center
EUR €1,155.00
ACCESSORIES
Learn more about the accessories
OBV-3200
HD 12-Channel Mobile Video Studio
MS-3200
HD 12-Channel Mobile Video Studio
PRODUCT DOWNLOAD
Manual
2022-02-10
(E3)
PD-4A Instruction Manual
Certificate
2021-07-26
LVD CE Certificate
2021-07-26
FCC Verification Certificate
2021-07-26
CE DoC Certificate
2021-07-26
CE Certificate
