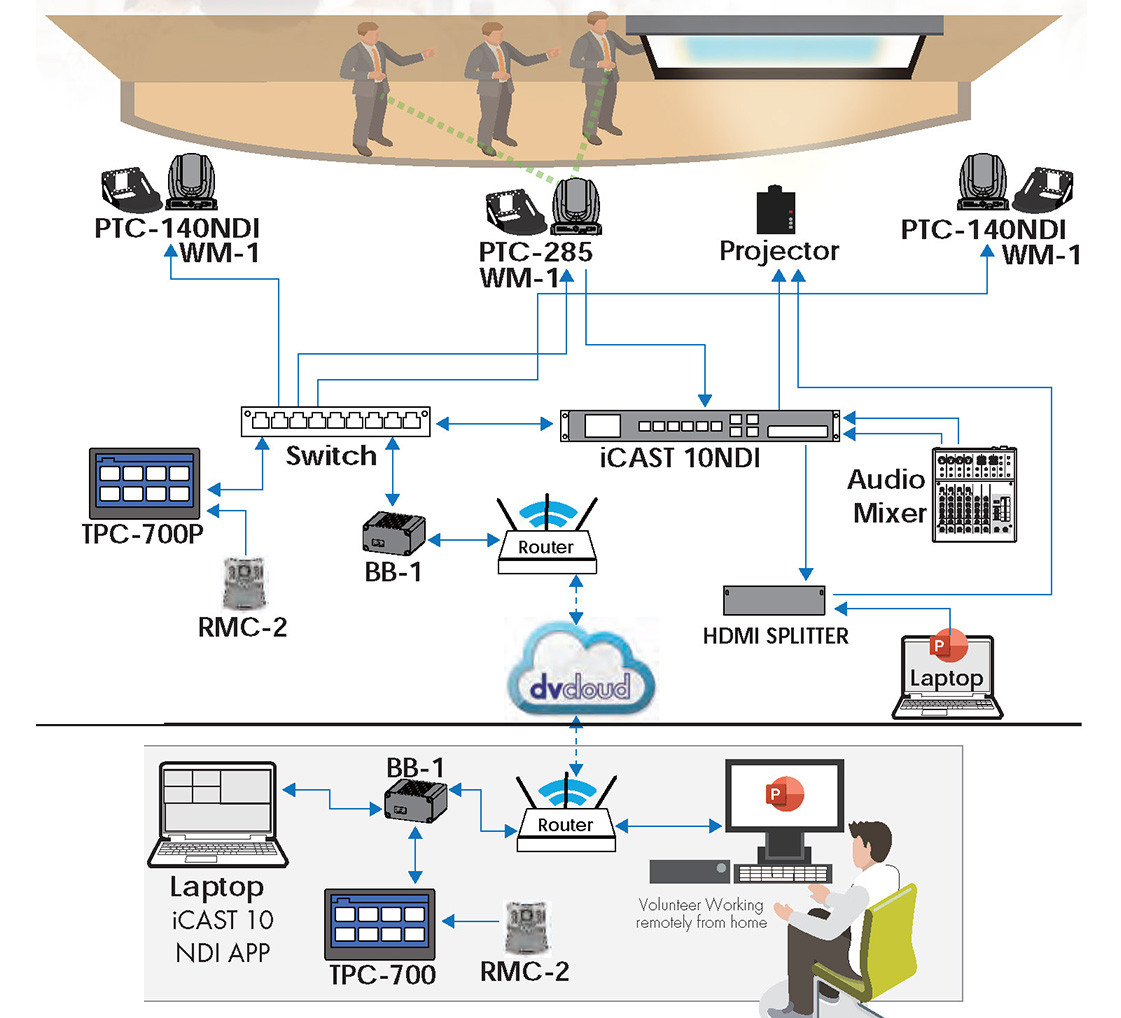

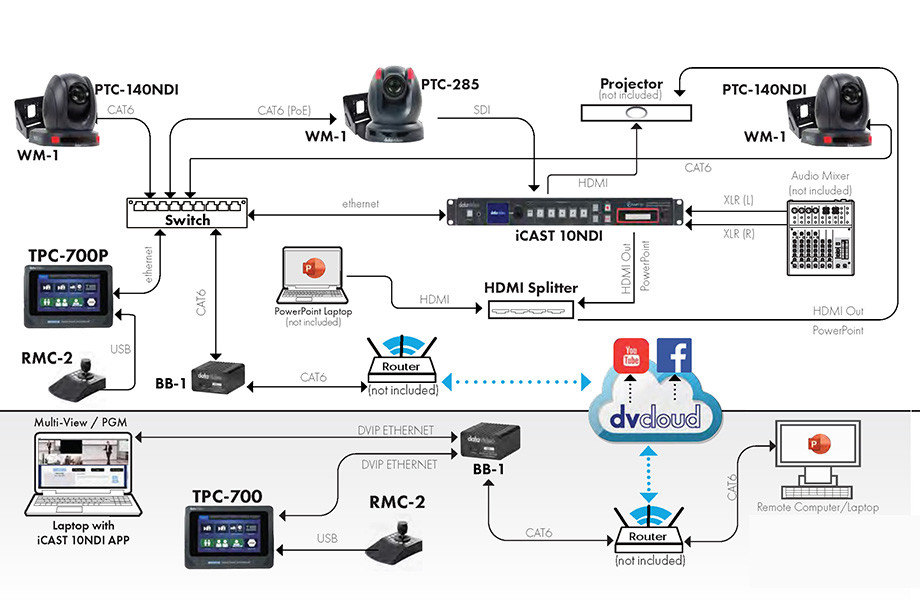

Remote Worship with Tracking

Remote Camera Control

Picture yourself producing a live production from anywhere in the world.

The BB-1 Kit provides remote access of Datavideo devices over the internet and acts as a DHCP server, automatically assigning IP addresses to all connected devices. BB-1’s can eliminate the need for IT professionals by virtually assigning and managing up to five Datavideo devices.

Producing live events has never been easier with this complete camera to cloud solution.


Key Features

Remote Control
Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Streaming
Stream to multiple platforms and record in the cloud using dvCloud Professional subscription.

Superior Optical Performance

The PTC-140 is a cost-effective SDI/HDMI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10x digital zoom gives you sharp images no matter where you mount the camera.  Advanced 2D/3D noise reduction allows you to create high quality images even in low light conditions.


H.264/H.265 video compression for streaming

Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression. AAC, MP3 and PCM audio compression also supported.  Support RTSP, RTMPS protocols, easy to stream directly to your desired CDN streaming platform.


Control Thru Many Ways

RS-232, RS-422 and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems.  Control real-time pan, tilt, and zoom camera movements with Datavideo HS-1600T MobileCast switcher , RMC-300A, RMC-300C, and RMC-180 MARK II.

Dark Blue and White Color Available

PTC-140 is available in two colors, dark blue and white. Suitable for broadcast, worship, video conferencing and etc.

Control Up to 25 Remote Devices

A single BB-1 pair will allow control of up to 5 devices at each location, each additional BB-1 will provide access to a further 5 devices.

Devices can connect over the internet just as if they are on the same local network.

BB-1 connectivity is powered by our dvCloud platform, each dvCloud Professional subscription supports up to 6 BB-1s while the essentials plan supports two BB-1s.

For more information on dvCloud please visit https://www.dvcloud.tv/.


Firewall Friendly, No Complex Setup

The BB-1 does not require any firewall or manual IP configuration, simply pair your BB-1s with your dvCloudaccount and manage your shared devices anywhere using our easy to use web interface.

BB-1 automatically detects all available Datavideo devices, simply select the devices you want to share.

BB-1 can provide remote access to devices connected to your existing network or create its own, the choice is yours.

Secure Connectivity

Be confident your network is safe. All data sent between BB-1s is secured using unbreakable 256 bit encryption.

BB-1 can provide remote access to devices on an existing local network or create its own isolated network if required.


Supports Low Latency, Reliable Streaming via SRT (Secure Reliable Transport)

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility. Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With the workflow of BB-1 combined with dvCloud that supports SRT technology, you can now replace the RTMP protocol with SRT. SRT is better than RTMP because it handles problematic networks more efficiently and solves data errors faster. As a result, your will experience a better stream, with less buffering and lower latency. Want to learn more about what SRT can do for you? Please refer to related article: What exactly is SRT?

How to Connect BB-1 Remote Control Devices to dvCloud for Remote Production

A tutorial on how to set up a remote production workflow. In this video, we show you how to connect the BB-1 remote control devices to a dvCloud streaming service to remotely control multiple IP controllable devices.
