PD-6A

Power Center
Power Distribution

Power Center

PD-6A
Features Media Specs Related Product Accessories Downloads

One power supply can provide the power source for up to eight devices

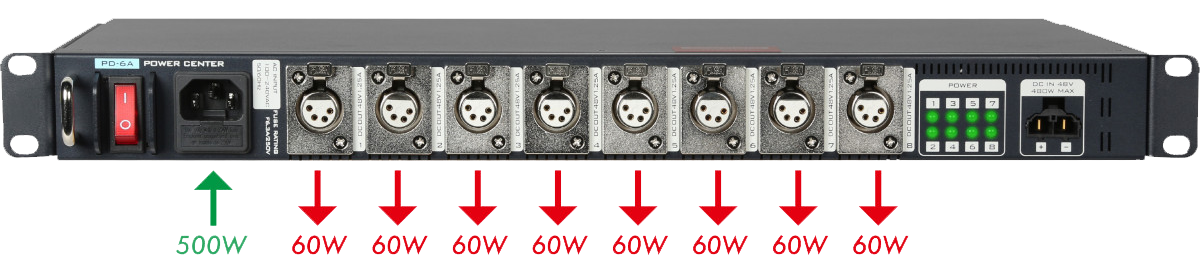

Each DC output provides 48V/60W, and 8 DC outputs with a combined total power consumption of 500W

PD-6A is designed to provide both DC & AC overload protection

Redundant hot-swappable power supplies

DC output LED indicator

Automatically adjusts to work with 50Hz or 60Hz supplies between 100-240 VAC

Different optional accessories available

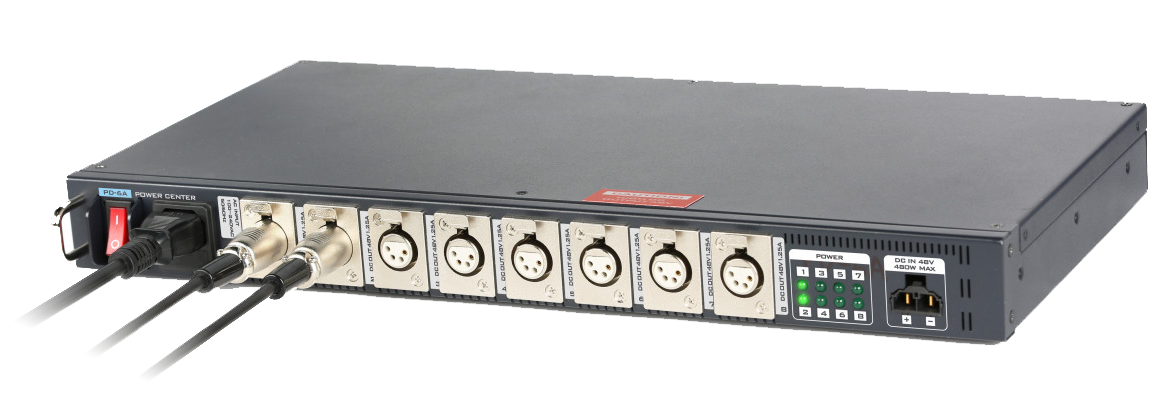

Compatible with Datavideo CB-22H, CB-23H All in one cable, DDC-4012H XLR DC-DC Converter and VP-605H All In One Cable Extender

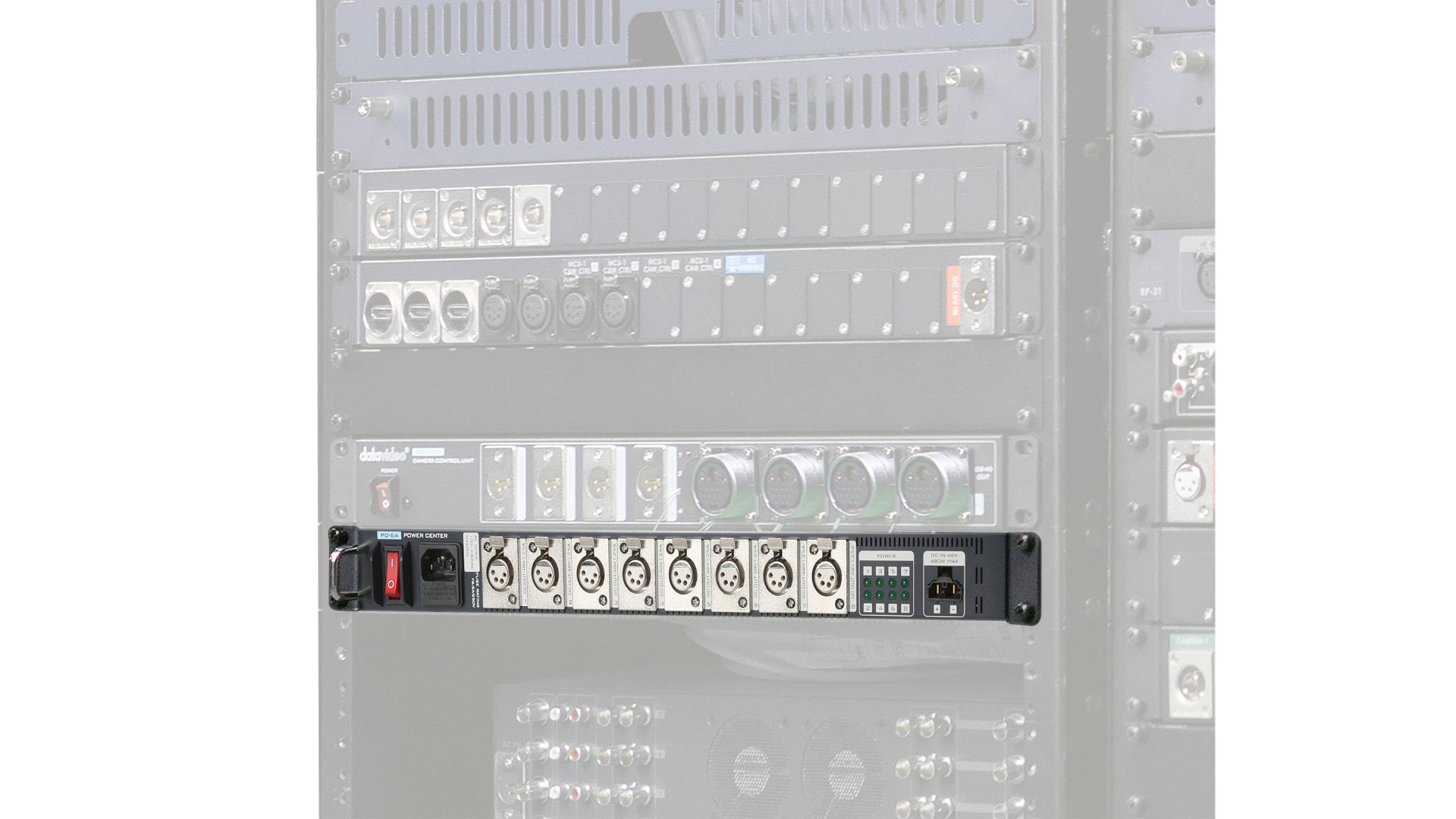

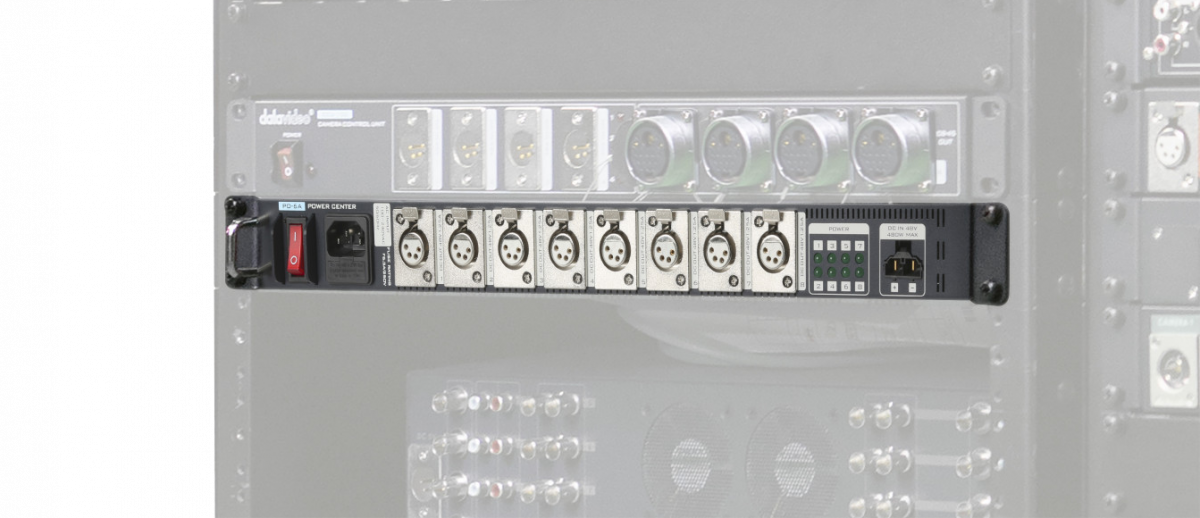

Standard 19 inch, 1U rack-mountable case

Strong and rugged material, super sturdy and durable

PRODUCT MEDIA


Power Center

COMPARE MORE PRODUCTS
Model Number
PD-6A
AC Input
100~240 VAC (50Hz or 60Hz)
(500W: 110V-120V/5A~220V-240V/2.6A)
AC input outlet: One AC input with Power Switch
DC Backup Input
----
DC Output
8 DC Outputs (4 pin female XLR) 60W: 48V (1.25A)
PIN 1: GND
PIN 2: DC OUT
PIN 3/4: N/C
Max. Power Rating
500W
DC Overload
105%~150% rated output power
Protection type: Recovery automatically after fault condition is removed
AC Overload
non-recovery fuse on the AC input outlet
LED Indicator
LED indicator for DC output: Green on operation
Note: If DC out is shorted or overloaded, the LED indicator will be turned off.
Power Source Input Select AUTO/AC
----
Dimension (LxWxH)
440 x 235 x 46 mm
Weight
5.2 kg
Power
AC 100-240 VAC
Operating Temp. Range
0~40 °C
What's in the Box
1 x PD-6A Product
1 x AC Cord
DOWNLOAD

RELATED PRODUCTS

Learn more about the related products
PD-2A

Power Center

MORE
PD-4A

Redundant Power Center

MORE

ACCESSORIES

Learn more about the accessories

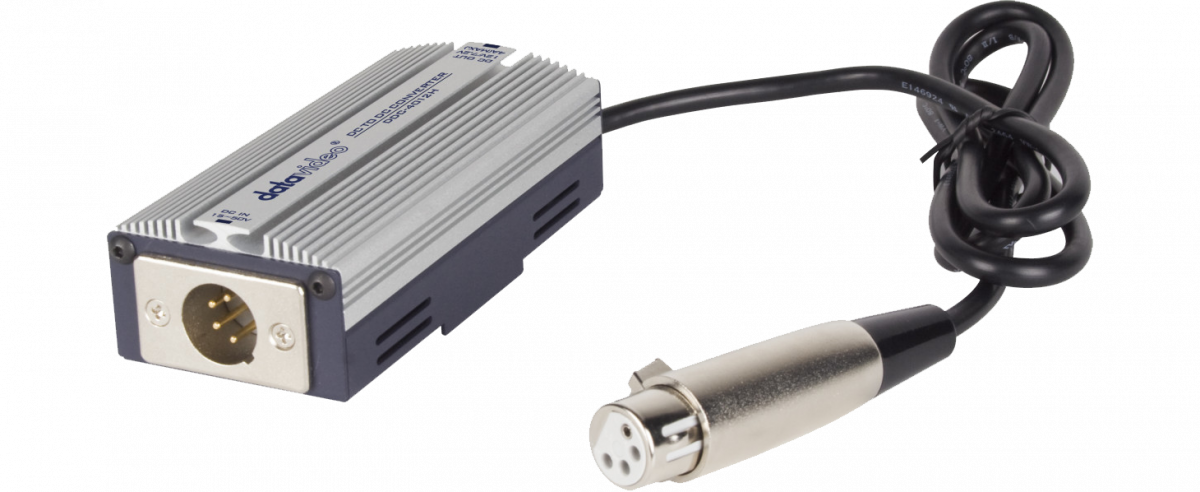

DDC-4012H
