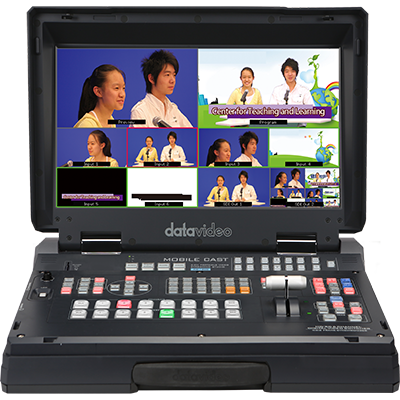

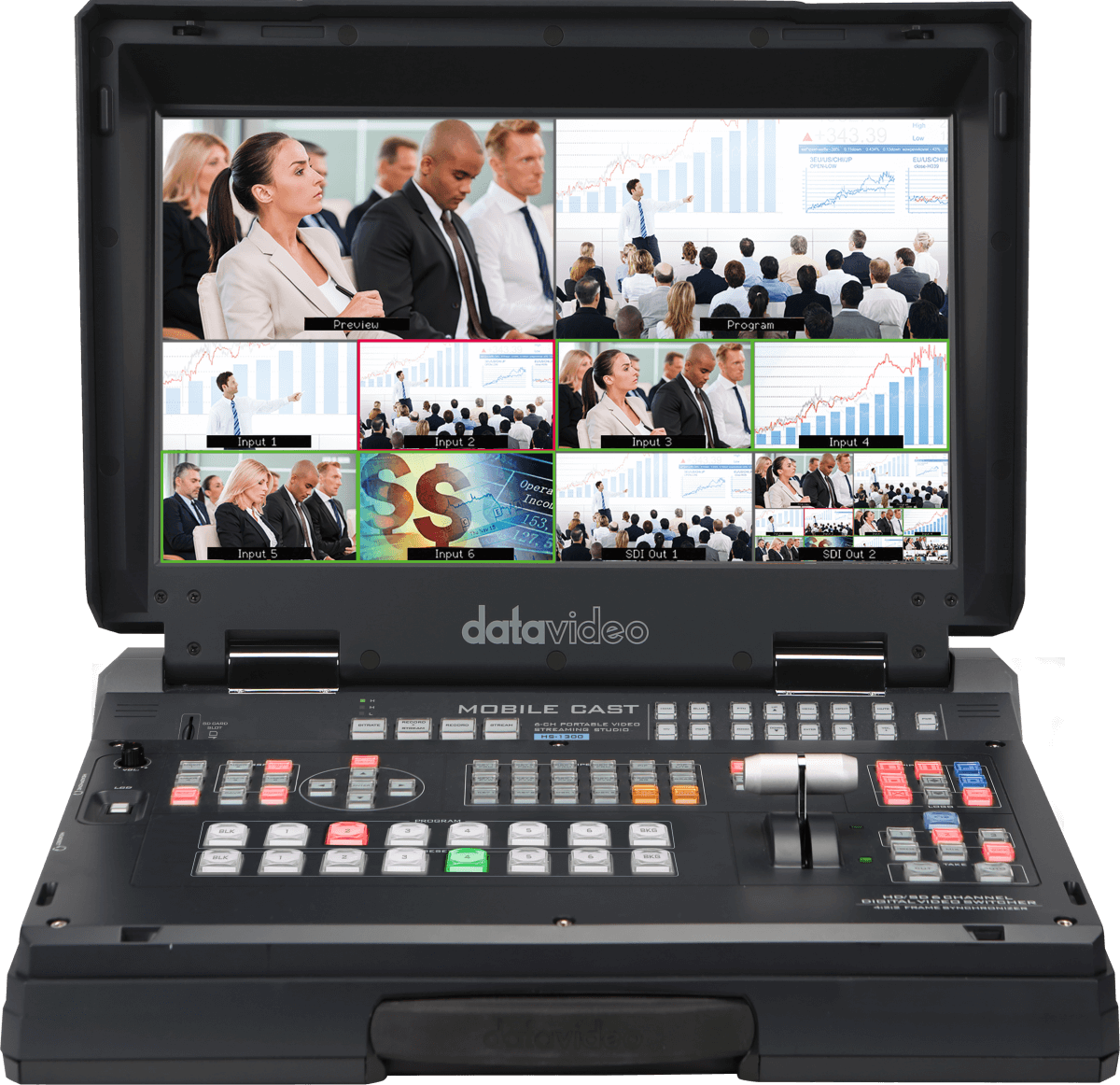

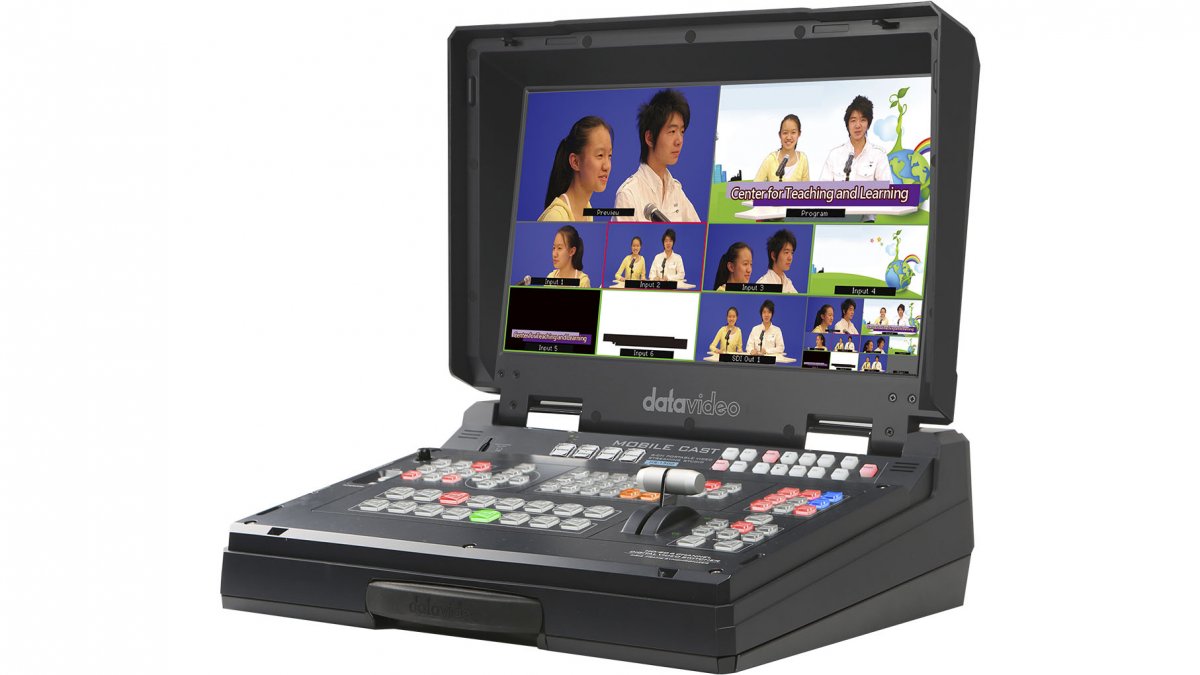

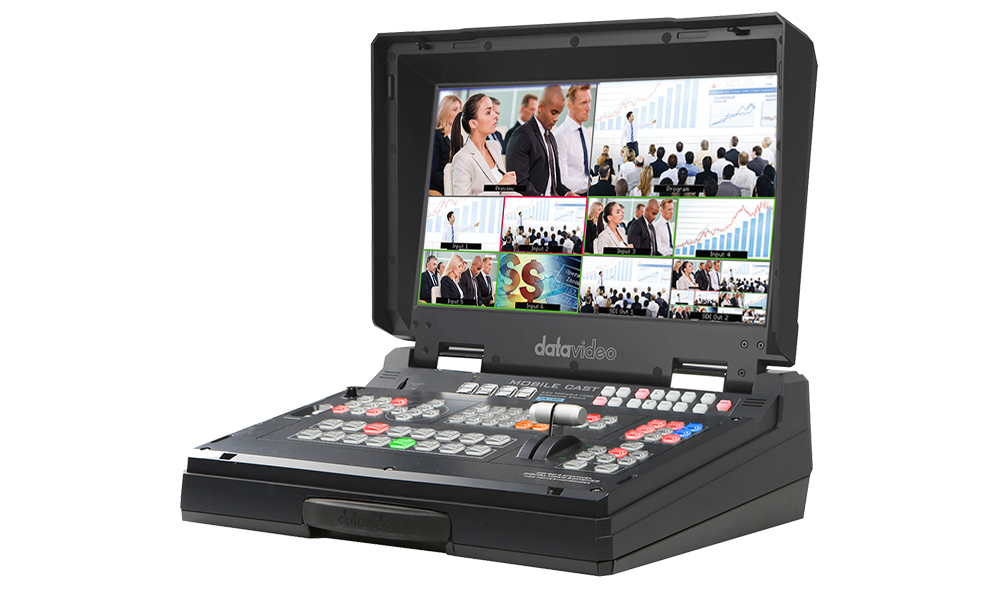

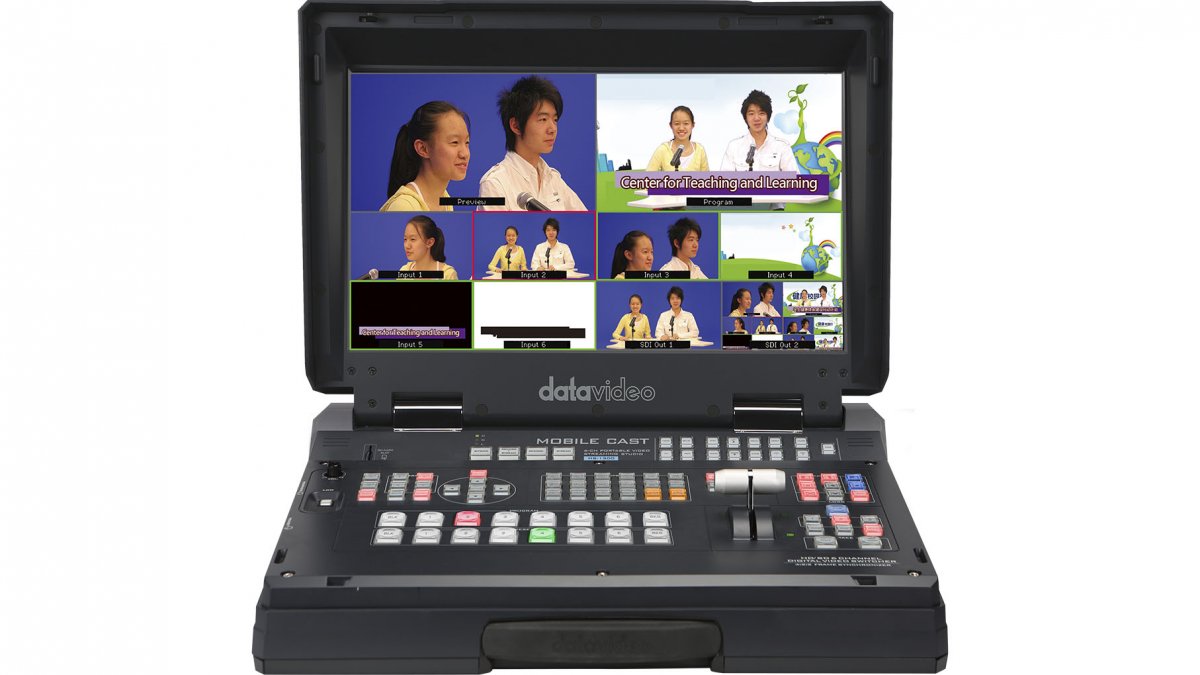

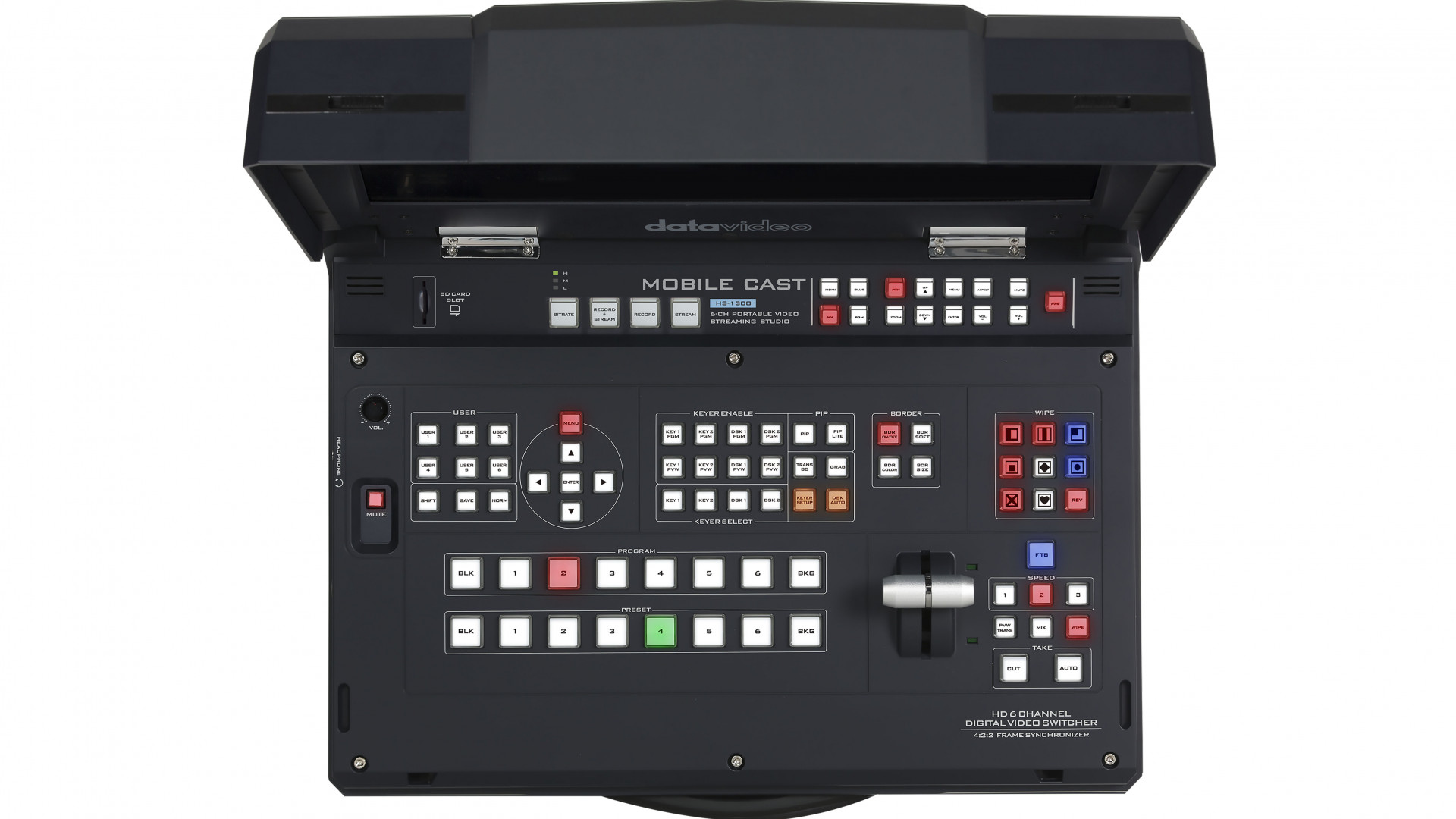

HS-1300

HD 6通道手提式移動錄播導播室
手提式導播室

HD 6通道手提式移動錄播導播室

HS-1300

HD 6通道手提式移動錄播導播室

比較更多產品
型號
HS-1300
影像系統
HD
影像格式
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
輸入格式設定
All 6, repeatable

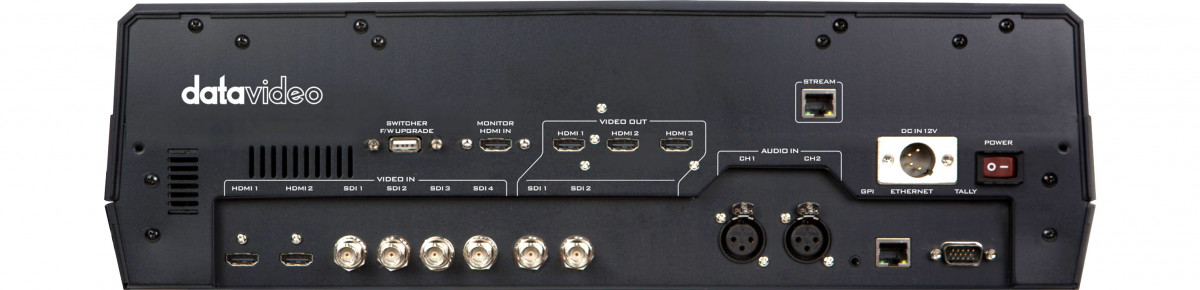

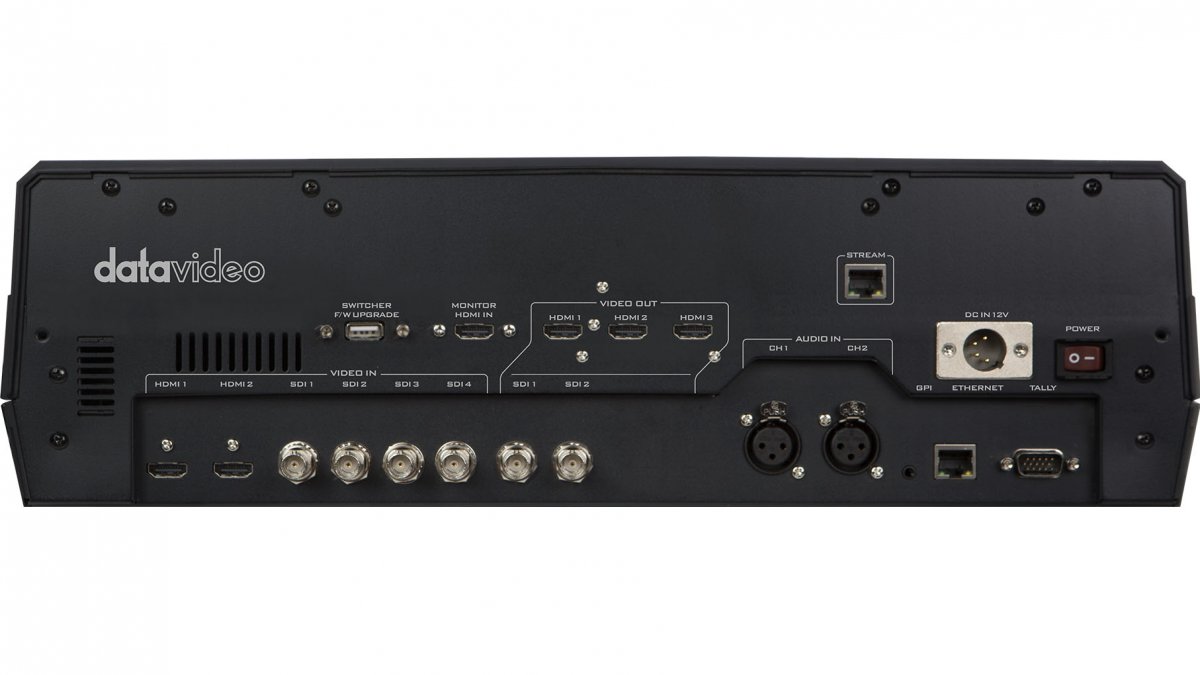

影像輸入
4x HD-SDI
2x HDMI
電腦輸入
2 via HDMI
下變換轉換器
----
影像輸出
3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
聲音輸入
2x Balanced XLR
聲音輸出
1x Stereo headphone
聲音嵌入
Input 2 channels, Output 2 channels
聲音延遲
----
聲音同步切換
Yes
USK
2x USK support Chromakey
DSK
2, support Lumakey & Linear key (Key / Fill)
子母畫面
1
LOGO
----
字幕機
----
混音機
----
監看螢幕

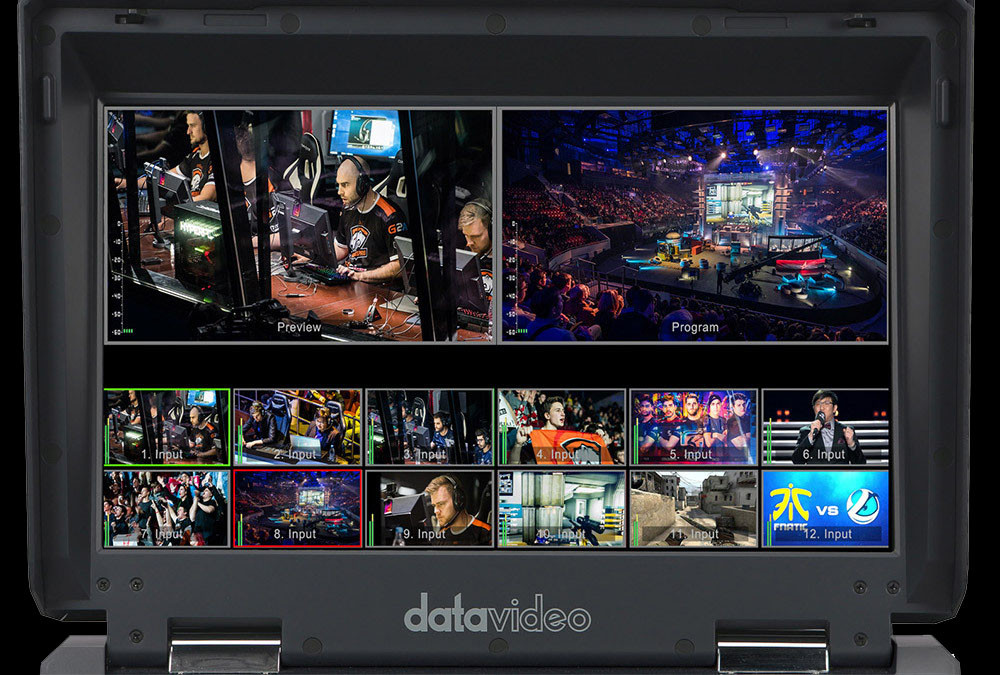

17.3” HD TFT LED backlit, 1600x900 pix
通話系統
----

Streaming

串流影片編碼
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
串流聲音編碼
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
串流協議
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS

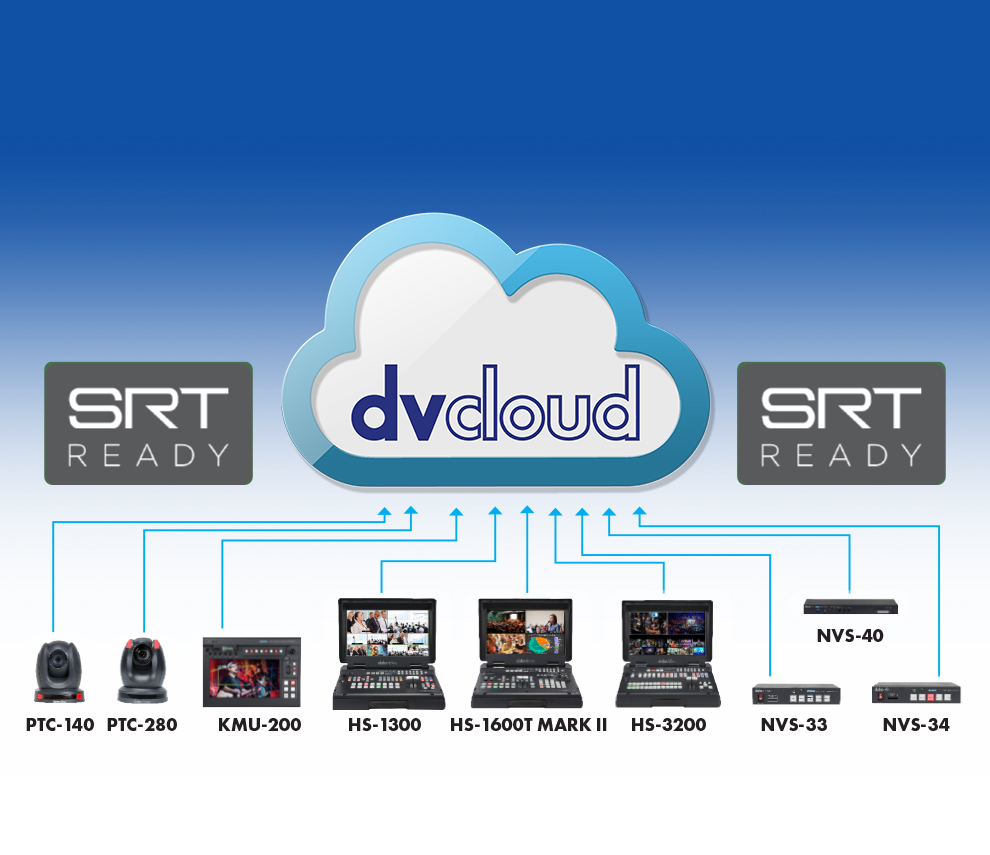

SRT
串流控制
Web browser UI for configuration and control Socket commands
錄製檔案系統
FAT, exFAT, NTFS
錄製檔案格式
MP4
錄製設定控制
Web UI for system configuration and control

Others

特別功能
Streaming encoder and recorder
2 chromakey virtual studio
9 stinger transition and 30 virtual sets included
尺寸
455 x 355 x 134 mm
重量
16.3 Lbs (7.4 kg), Reinforce Plastic Case
电源
DC 12V, 5A
操作溫度
0~40 °C
附件
1 x HS-1300 Product
1 x AD Switch DC 12V with AC Cord
