Live productions depend on high performance cameras and camera controllers.
Datavideo is introducing the 4K50/60p auto tracking PTZ camera, PTC-305T can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.
This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.
HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, and furniture.
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
With built-in 1/1.8" CMOS sensor, supports resolution up to 2160p 50/60.
The PTC-305T camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
Supports simultaneous HDMI 2.0 and HDBaseT/IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

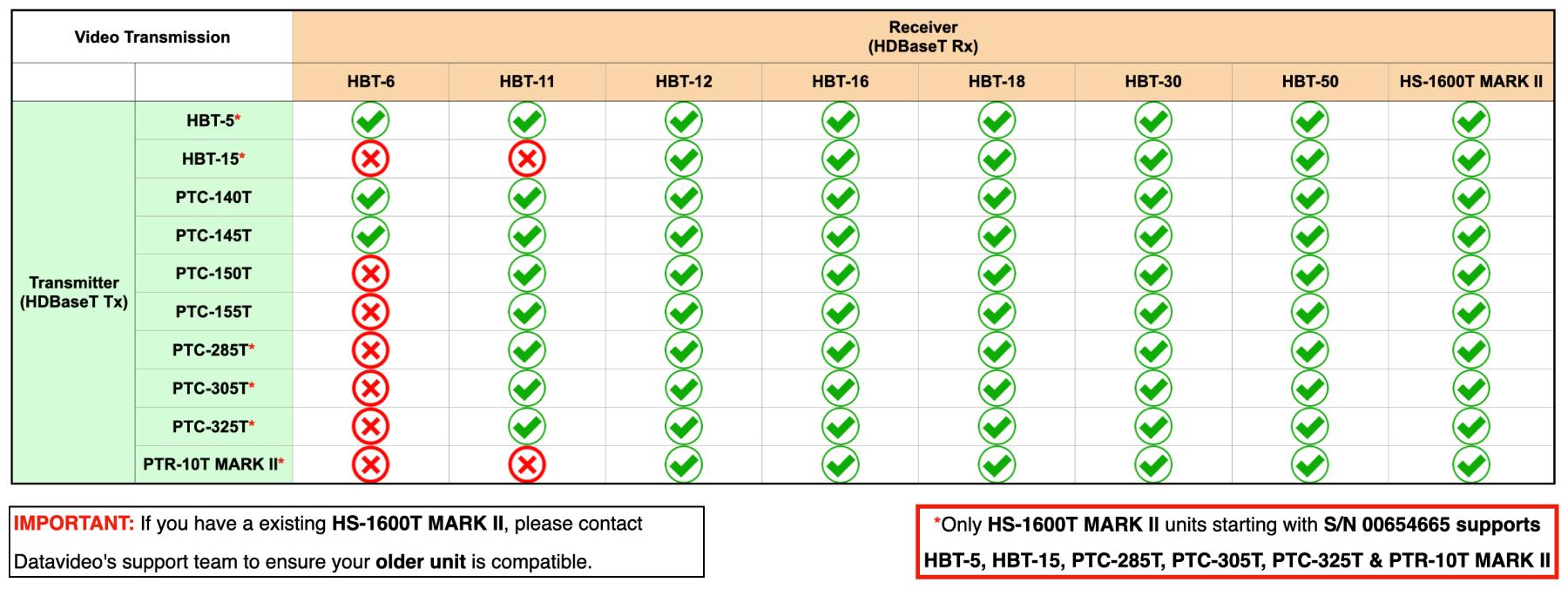

The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video, and transmits video, audio, streaming, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
By using the HBT-16 HDBaseT receiver, user can connect the camera to a PC or laptop via the DVIP port. The DVIP (Datavideo IP) control protocol allows for remote management and control of your AV devices over an IP network and supports transmitting the camera's streaming signal to the computer.
The PTC-305T supports PoE and HDBastT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-305T.
Green and red lights tally to show the preview and program status for broadcast applications.
PTC-305T provides a wide Field of View of 60°, easily shooting all the scenes in the field.
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.
The PTC-305T is available in dark blue or white to remain inconspicuous in permanent setups.
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv
Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MARK II switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTC-305 Series is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
