Acepta automáticamente voltajes de entrada entre 15 y 50 V CC para proporcionar una salida regulada de 7,2/8,4/12 V CC dependiendo de la configuración del interruptor de salida

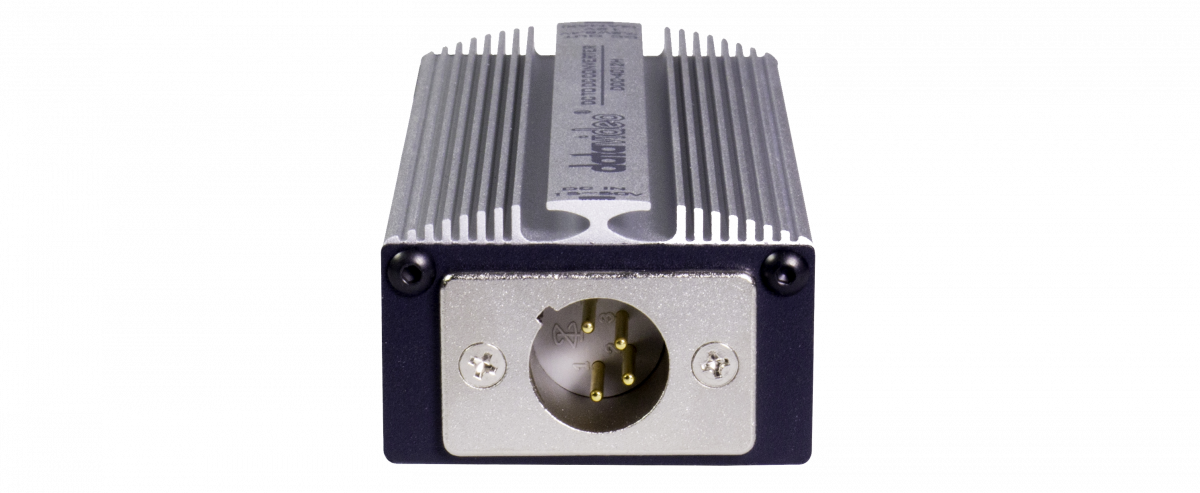

Interruptor de salida de CC con collar de bloqueo de 2,1 mm

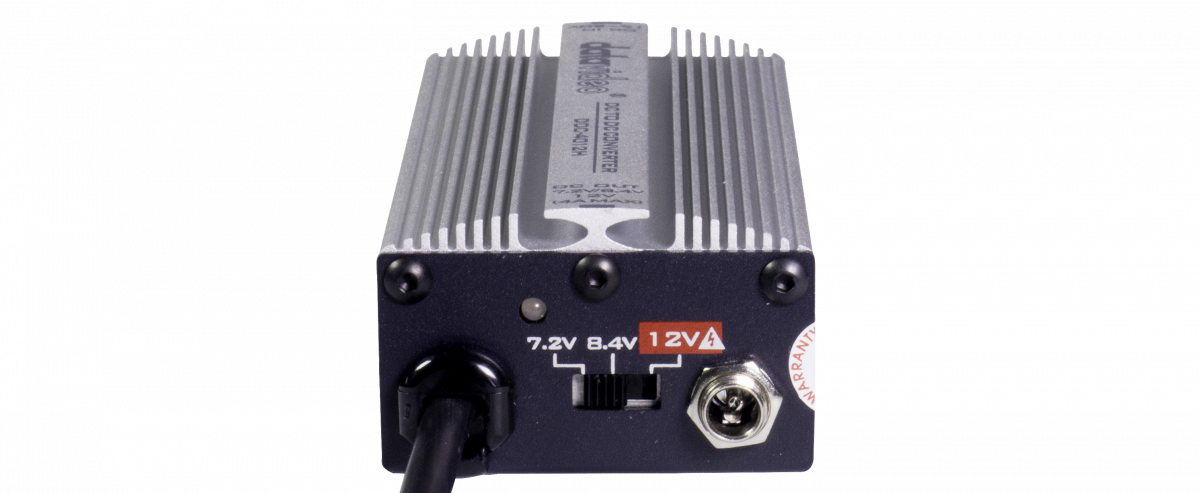

Salida de potencia máxima de 48 W/4 A y admite 48 V para usarse con PD-6
MEDIOS DE PRODUCTO

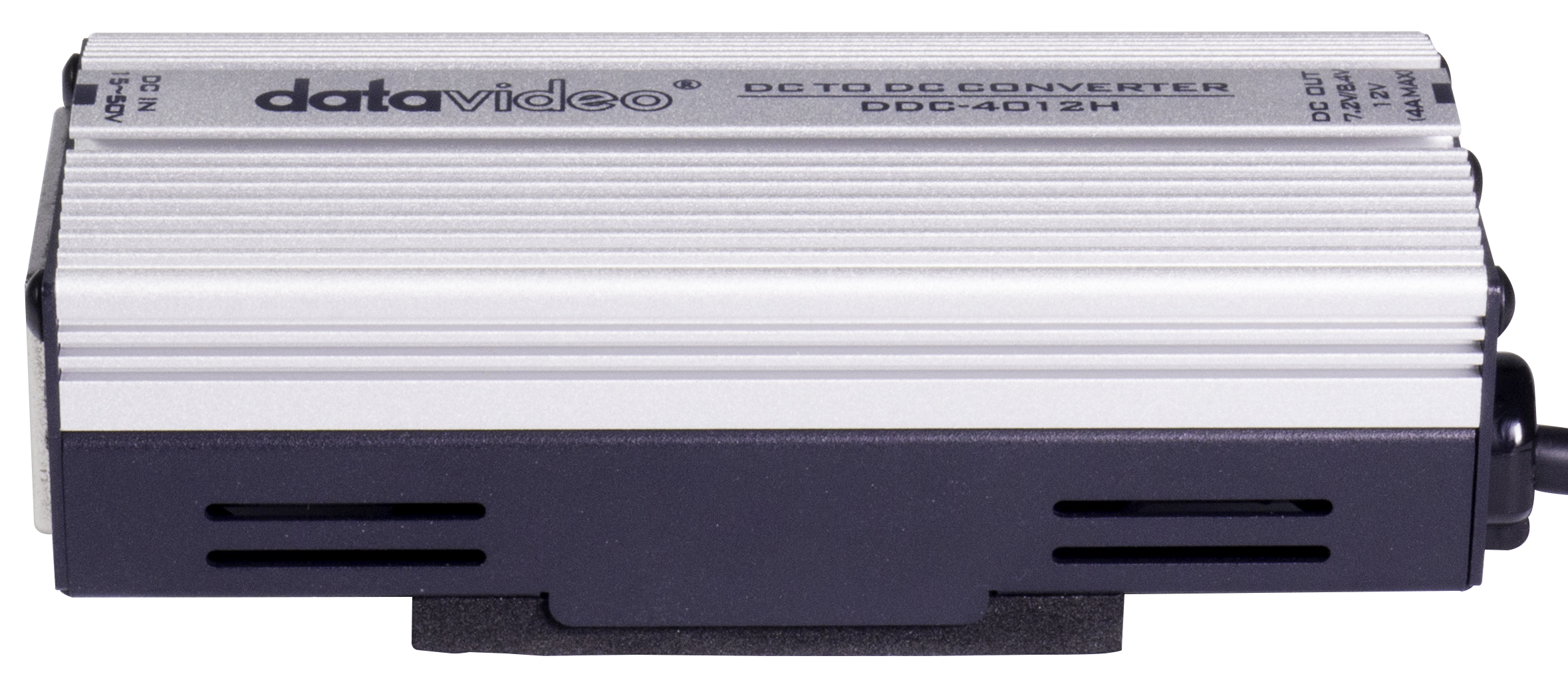

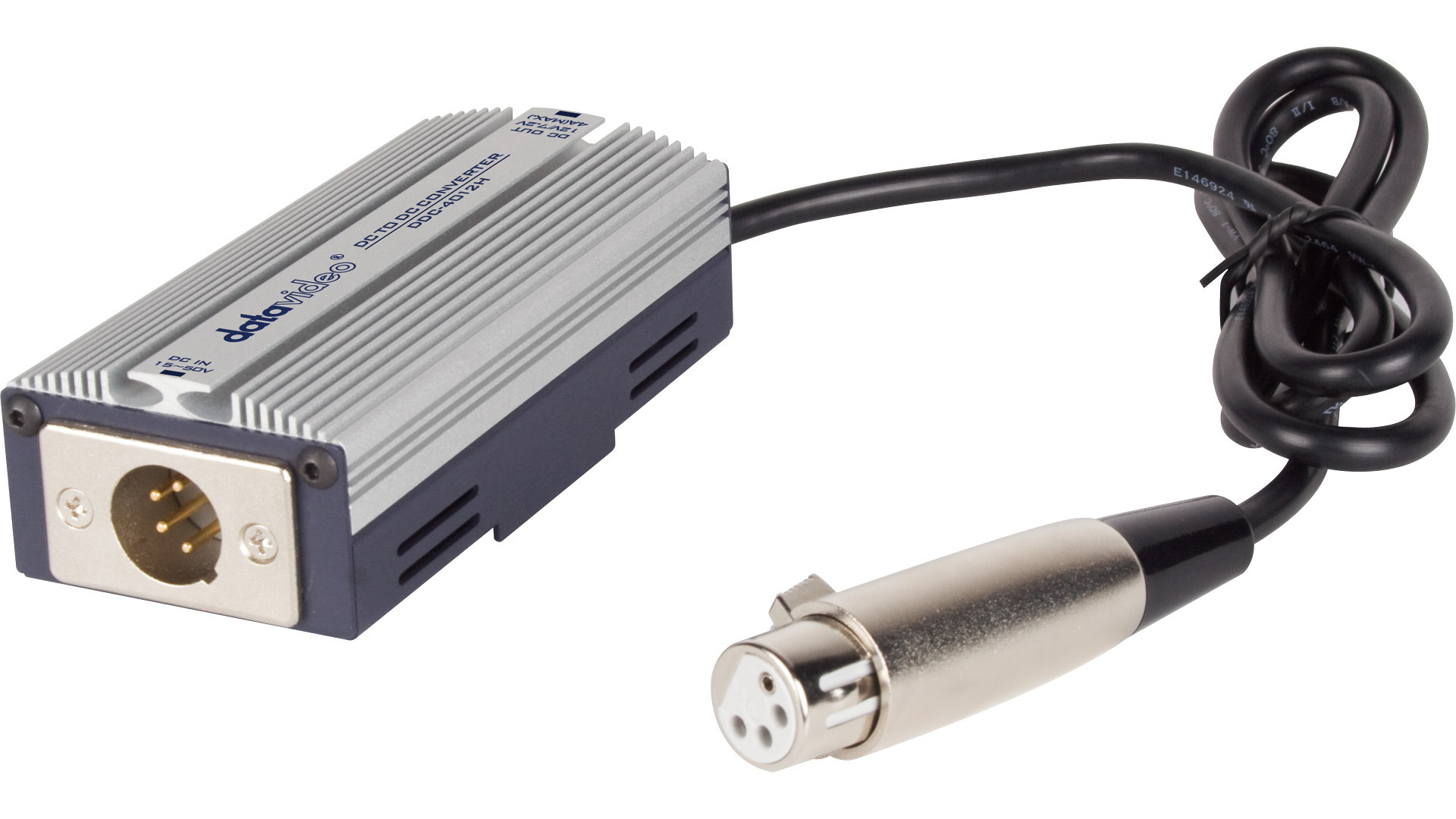

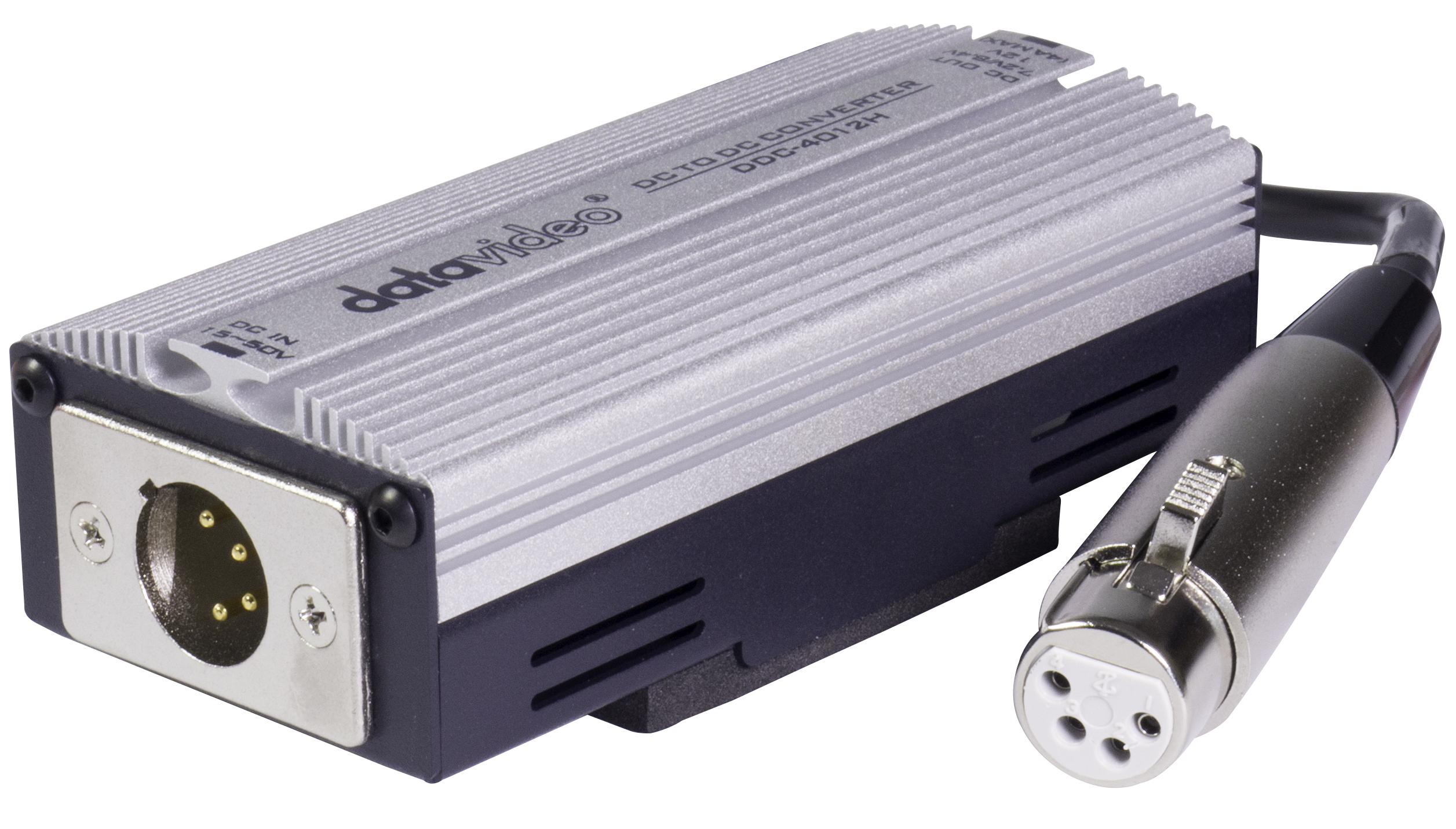

In-Line XLR DC-DC Converter 7.2/8.4/12V
Número de modelo
DDC-4012H
Input Voltage Range
15V~50V DC
Input Efficiency(Typ.)
up to 85%
Output DC Voltage
7.2V/8.4V/12V
Output Voltage Tolerance
±3%
Output Rated Current
4A
Output Current Range
0~4A
Output Rated Power
48W
Output Ripple & Noise(Max)
<400mV
Protection
Over Load
105%~150% rated output power
Type
Recovery automatically after
fault condition is removed
Connector

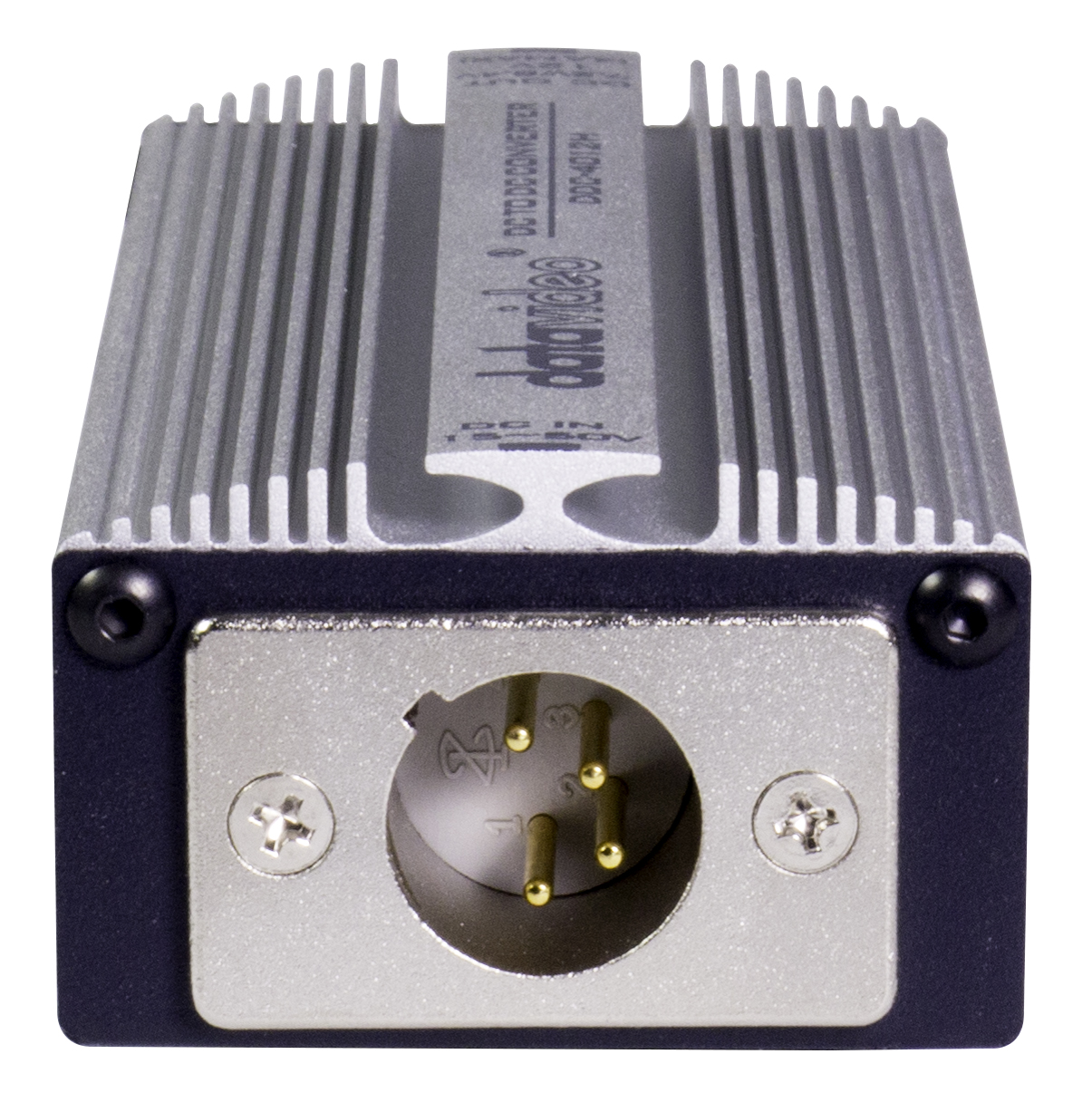

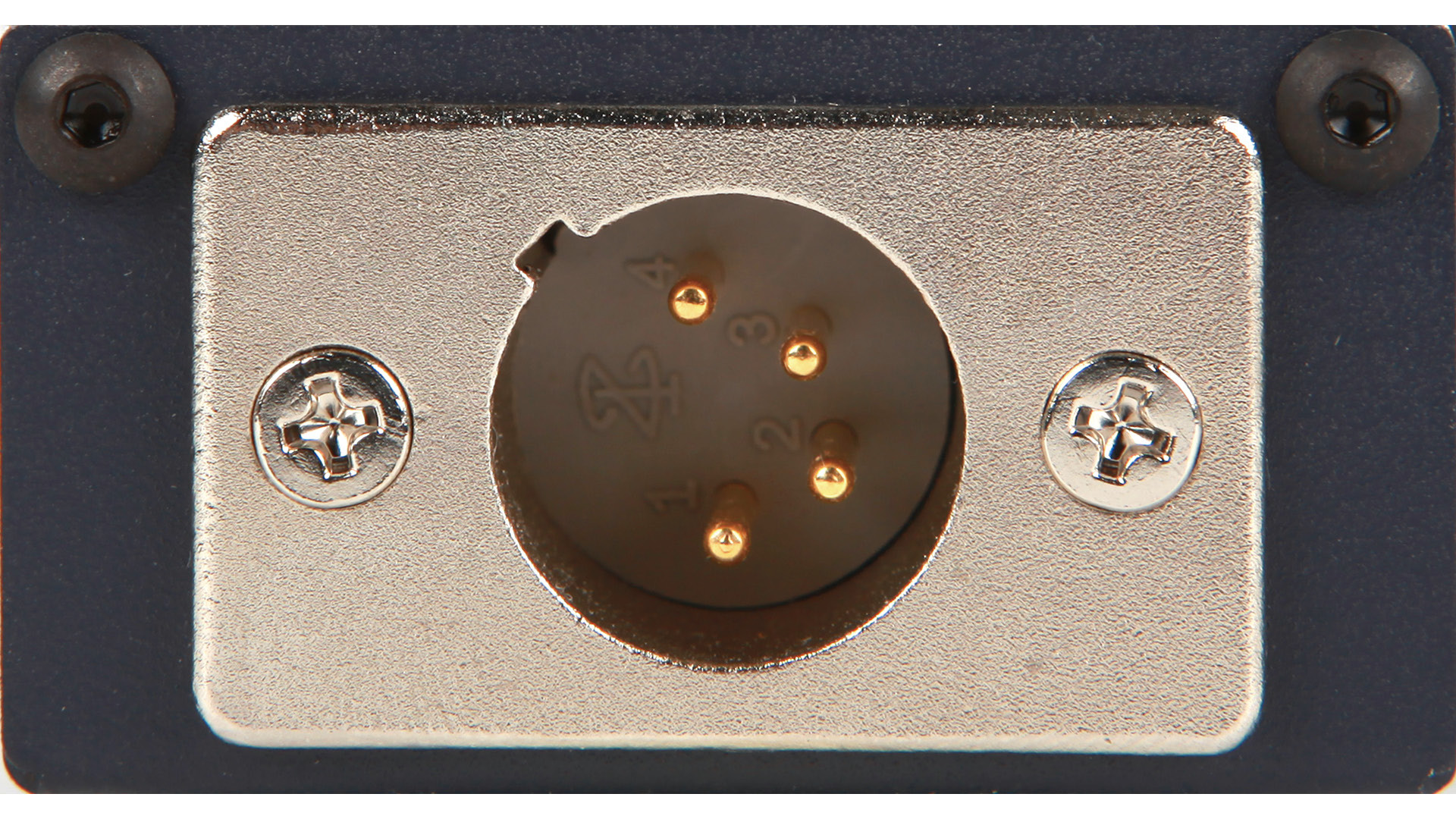

DC Input(4Pin XLR Male)
PIN 1:GND, PIN 2: DC IN, PIN3/4: NC
DC Output(4Pin XLR Female)
PIN 1:GND, PIN 2/3:NC, PIN4: DC OUT
DC Output(5.5mm DC Jack)
Center: DC OUT, Shell:GND
Environment
Working Temp
0°C to 40°C (32°F to 102°F)
Working Humidity
10% to 90%(non condensing)
Storage Temp. Humidity
-40°C to +85°C, 10~95%RH
Others
Dimension (LxWxH)
115mm x 50mm x 35mm (LxWxH)
Weight
Approx. 0.3kg/0.66lbs
Cable
UL 2624, 18AWG, L=1M

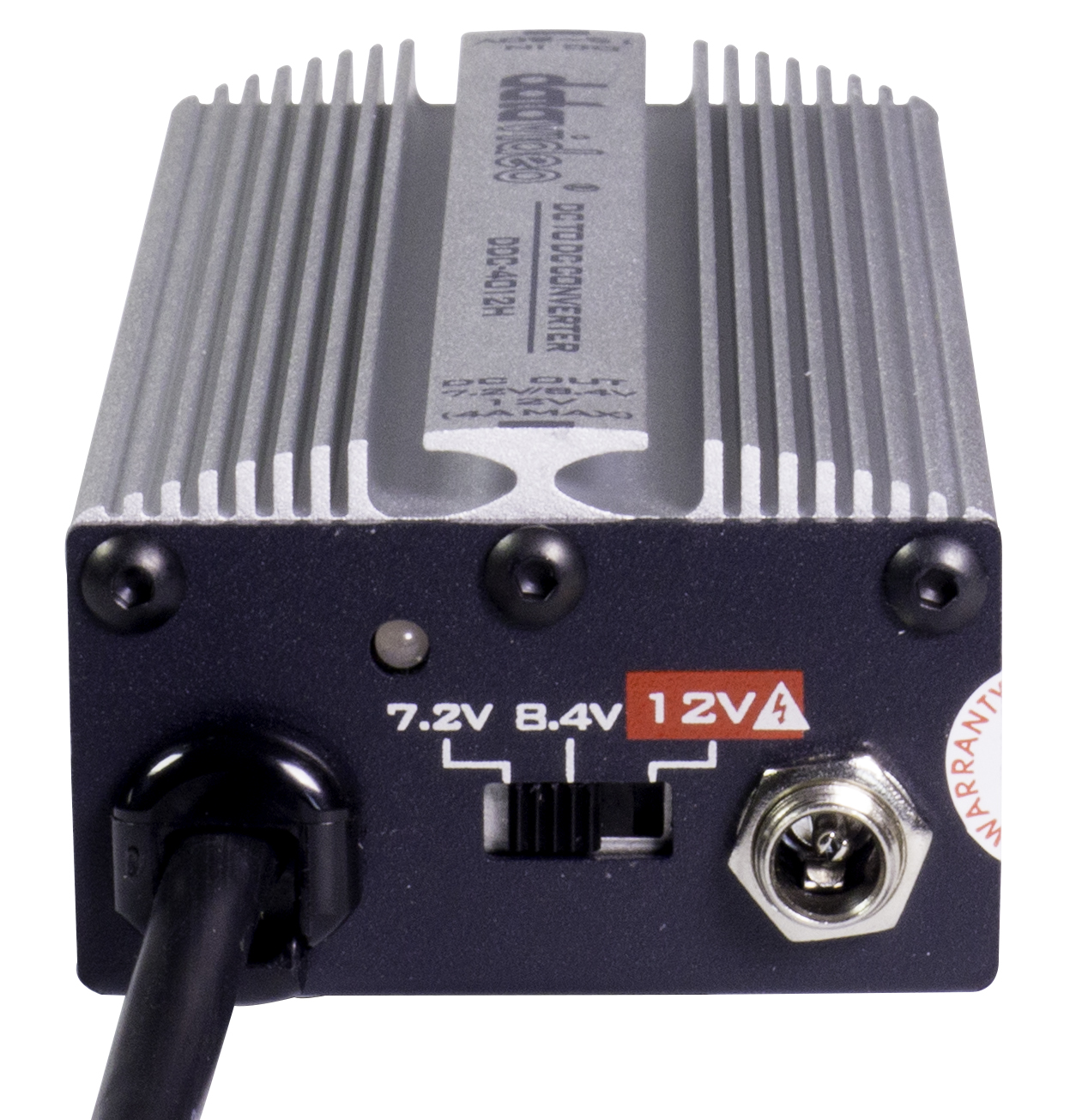

Slide Switch
Selected 7.2V or 12V/8.4V output
LED Lamp
RED:DC out 12V, Green: DC out 7.2V,
Orange: DC out 8.4V
