LOGO

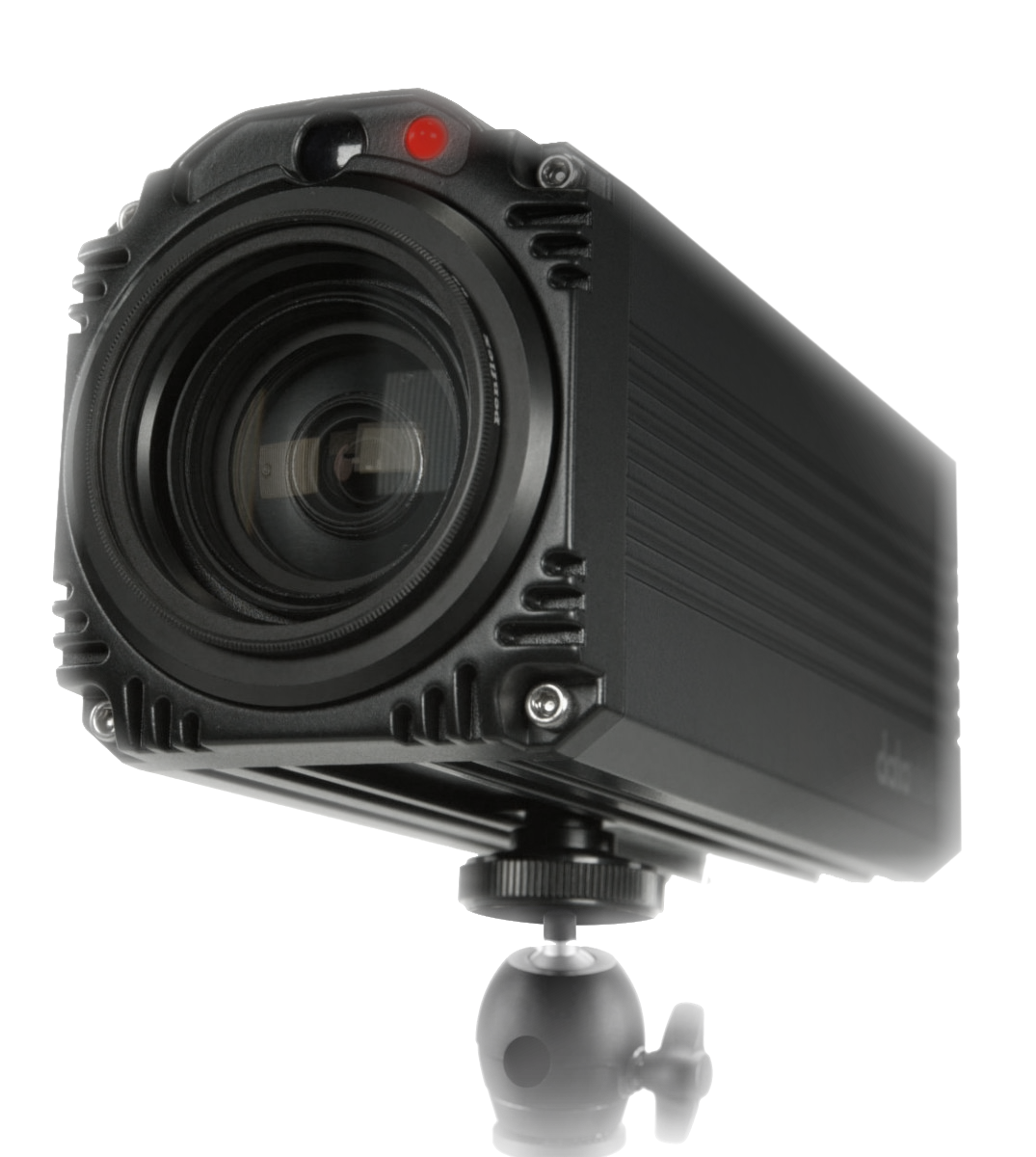

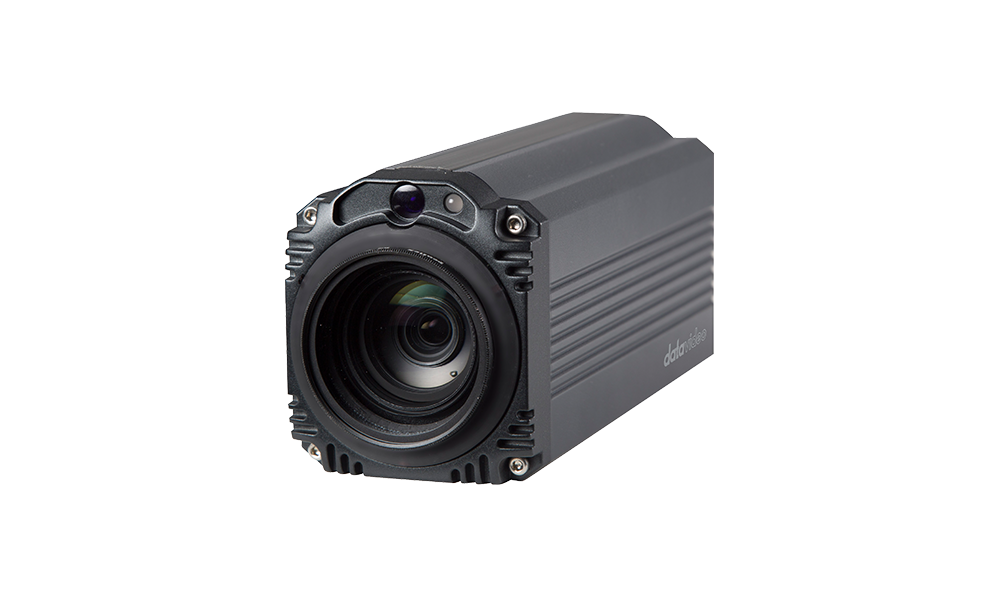

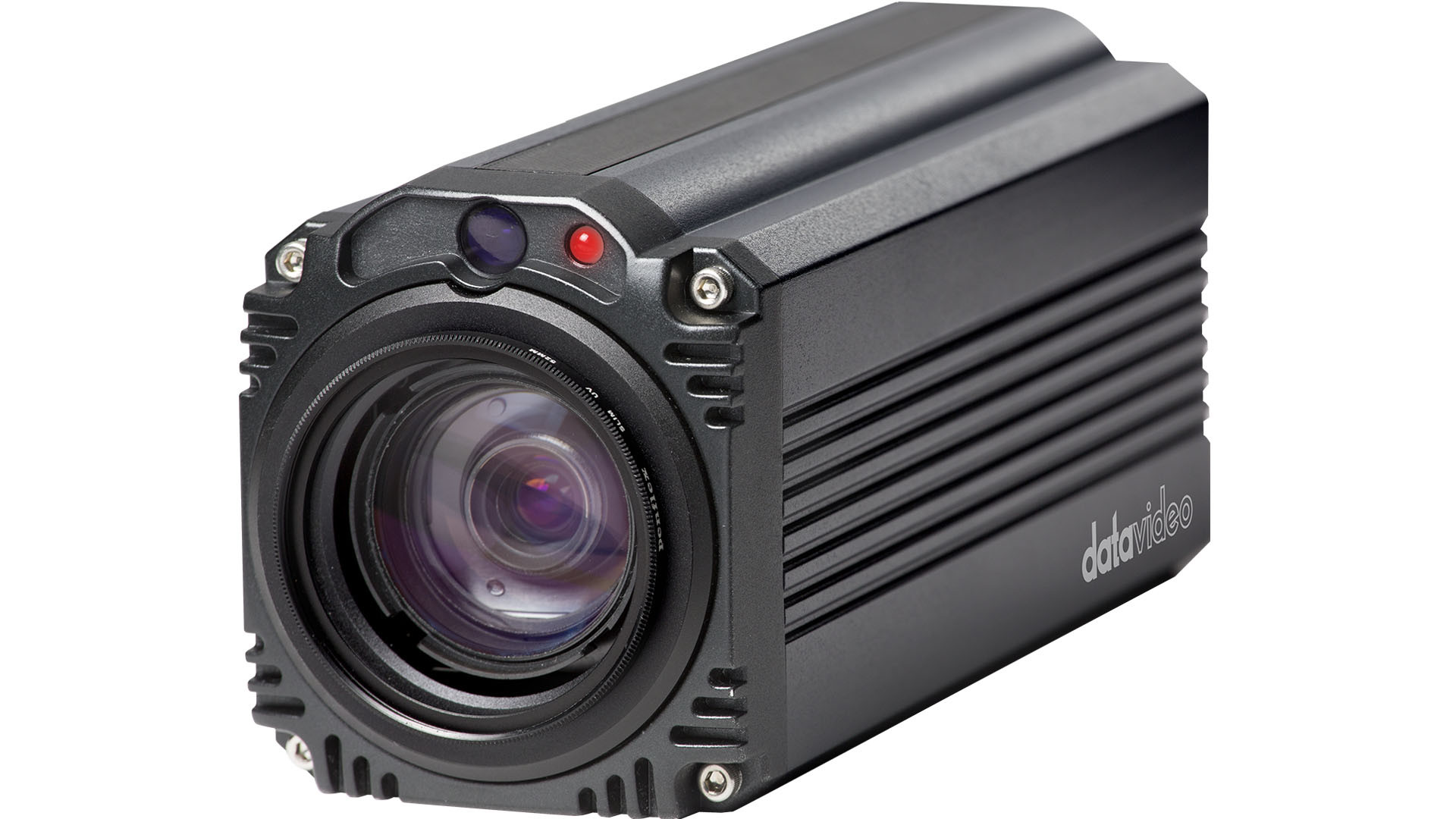

BC-80

HD Block Camera
LEGACY

Excellent HD resolution

1/2.8 inch CMOS sensor. 1080p HD resolution.

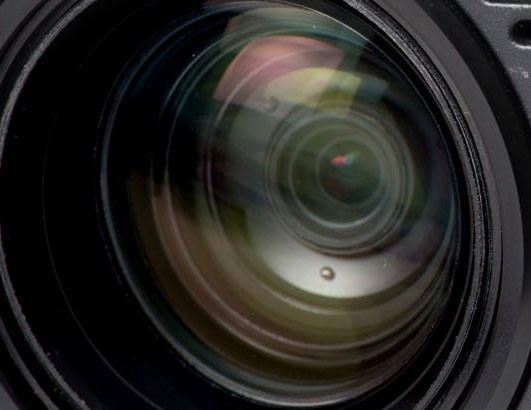

30x optical zoom with digital noise reduction

The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.

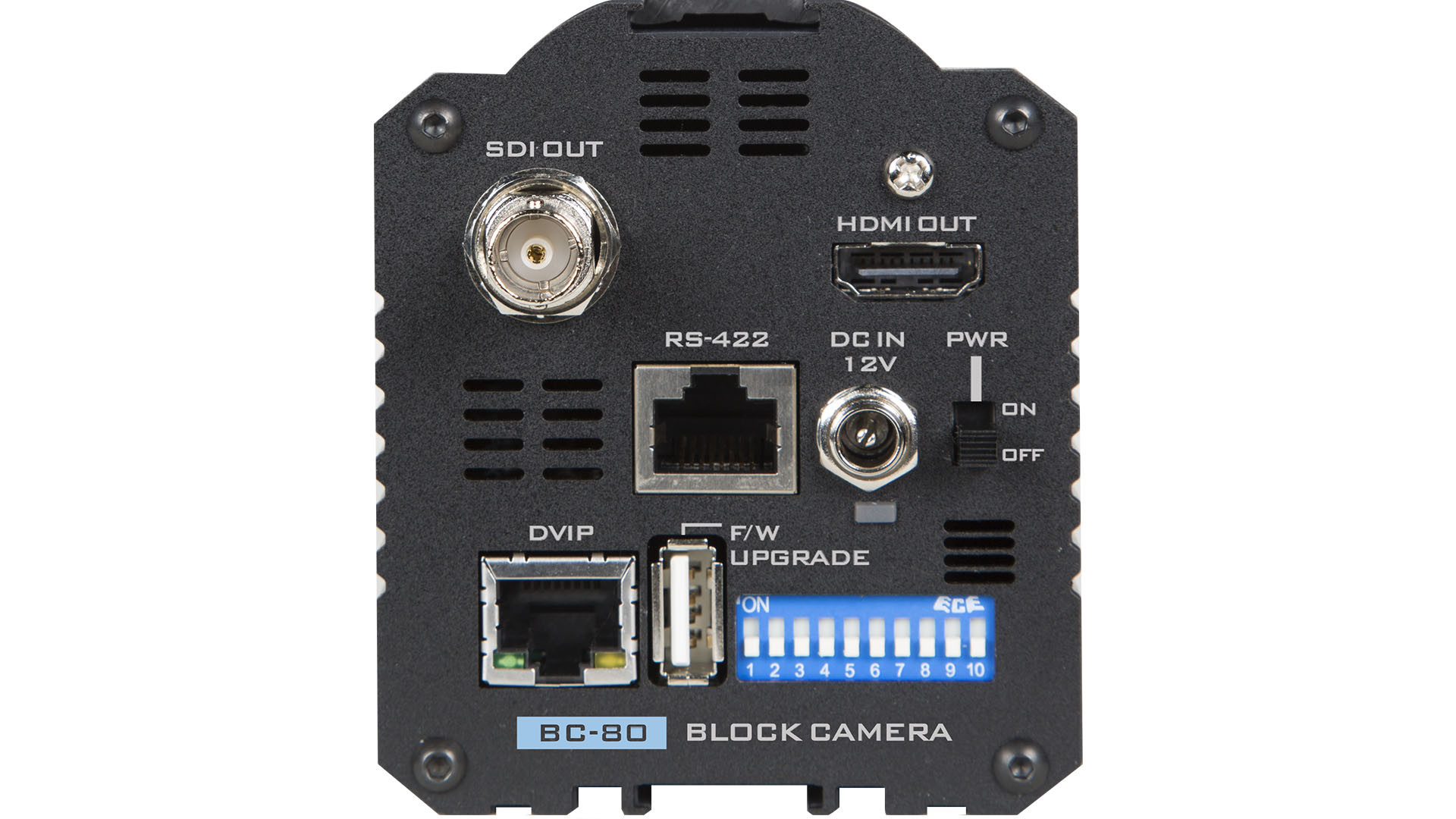

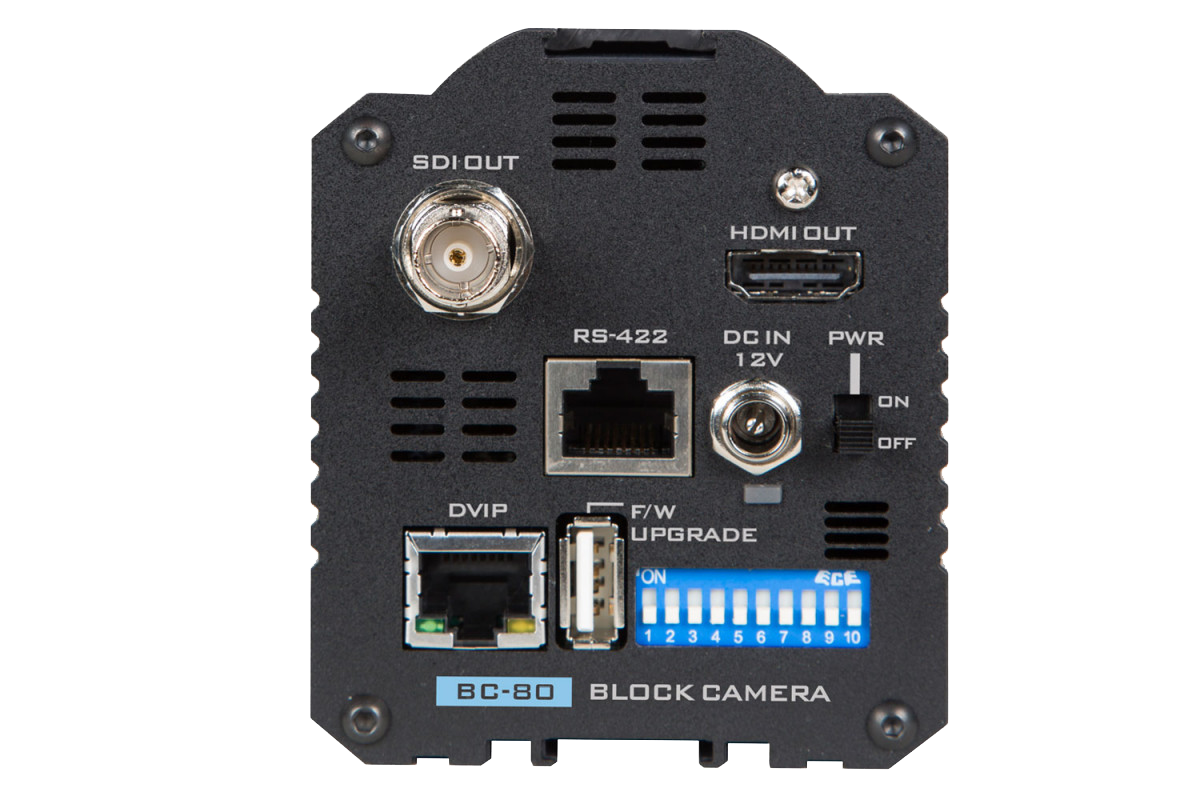

1x 3G-SDI, 1x HDMI video output

Featuring a 3G-SDI and HDMI output this camera is ready to be used in any AV or broadcast workflow.

DNR process to ensure the video has the optimal image quality under low light by noise reduction.

Digital Noise Reduction Function zoom (DNR)

DNR process to ensure the video has the optimal image quality under low light by noise reduction.

Controllable by VISCA/DVIP

The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.

Where to Buy?

   Find an authorized reseller

HD Block Camera

COMPARE MORE PRODUCTS
Model Number
BC-80
Video format/Resolution
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
Image Sensor
1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)
2.14 Mega pixels
S/N Ratio
50 dB
Min. Illumination
Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter
1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio
30x Optical Zoom
Gamma Control
Off / Normal / Standard Mode 1-4
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English
White Balance
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control
Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)
HDR/WDR
WDR
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
----
Panning / Tilting Speed
----
Preset
10 Position
Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation
Day & Night function
Video Output
HDMI (V1.3) x 1
3G-SDI x 1
Audio Input
----
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA / DVIP Protocol
Remote Control Interface
RS-422: Transmit up to 1000m
DVIP (RJ45): 100m
Video Compression Format
----
Audio Compression Format
----
Audio Bitrate
----
HD IP Interface
----
Streaming Protocols
----
First Stream Supported Resolution
----
Second Stream Supported Resolution
----
Video Bitrate
----
Video Bitrate Mode
----
Encoding Frame rate
----
POE
----
F/W Update
USB
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP

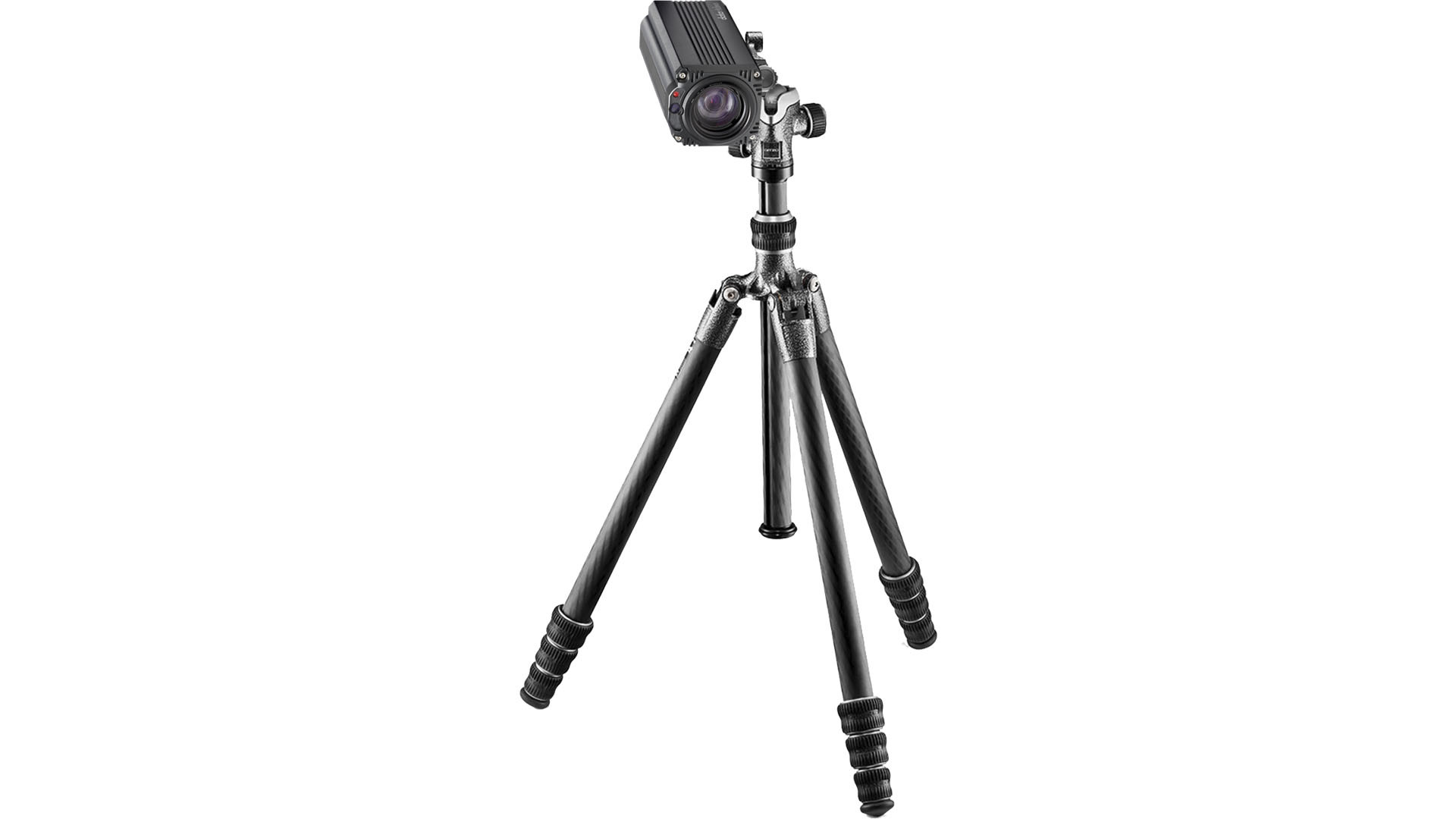

Tripod Mount
1/4-20 UNC
Optional Accessories
----
Color
Dark blue
Dimension (LxWxH)
71 x 202 x 83 mm
Weight
0.7 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 15W
What's in the Box
1 x BC-80 main unit
1 x IR remote control
1 x DC 12V power adaptor
