HS-2850-12

HD/SD 12-Channel Portable Video Studio
USD $6,599.00
Mobile Cast

HD/SD 12-Channel Portable Video Studio

HS-2850-12
USD $6,599.00

A Complete and Professional Studio Made for Big Events

This professional studio includes a built-in switcher, intercom, tally, audio delay and monitor.

Ideal for Large-sized Live Video Productions

Supports up to 12 HD or SD inputs in a variety of configurations, 3 SDI and 1 HDMI freely assignable outputs.

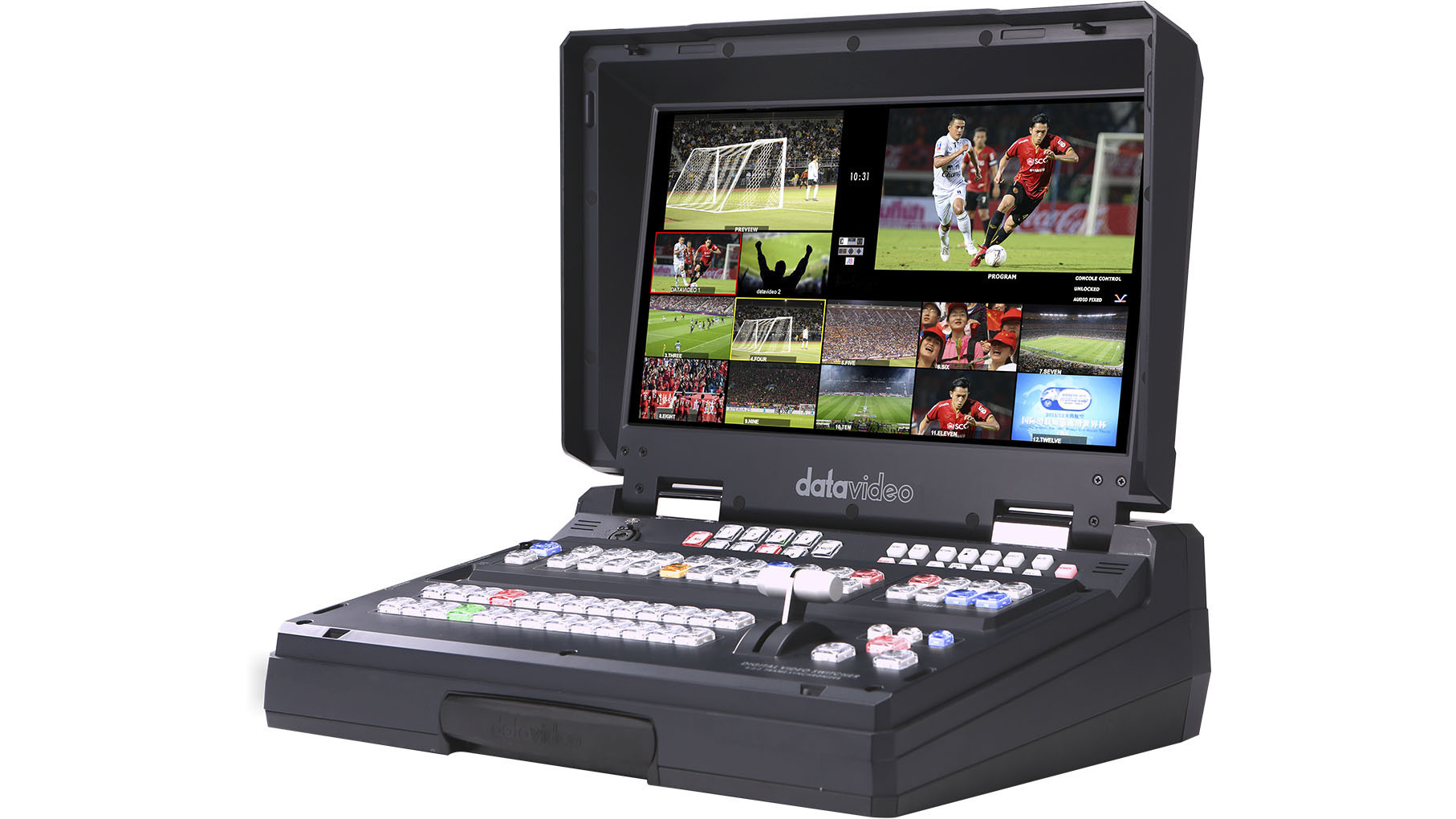

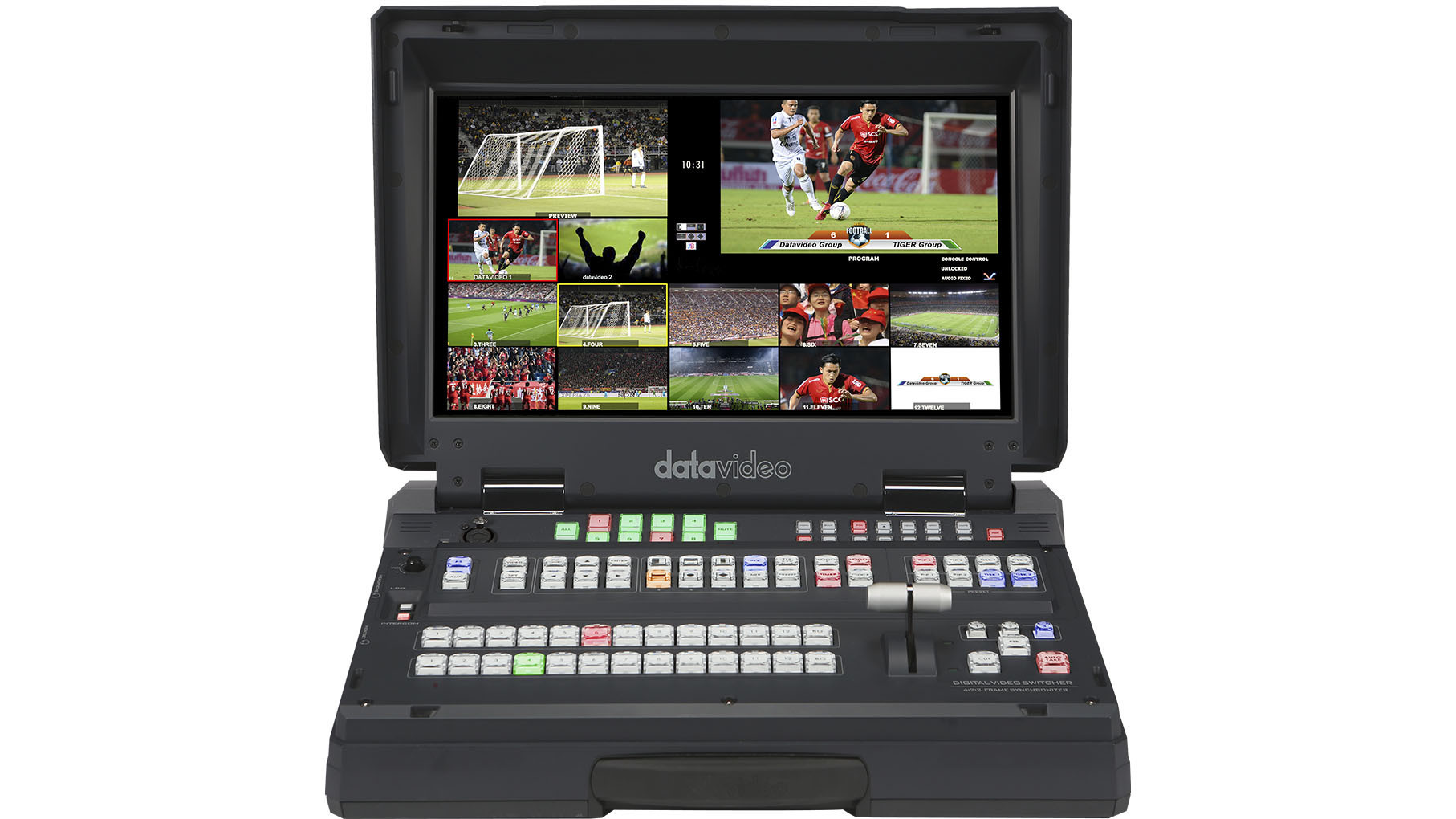

17.3'' LED Backlit Monitor

17.3'' LED Backlit Monitor

Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1920x1080 pix.

Create impressive video effects to enhance your production.

Create Impressive Video Effects to Enhance Your Production

2 x PIP and 2 x DSK assignable for luma key or alpha key.

Built-in Title Overlay and Perfect Lip-sync

Add custom graphics to help tell your story with the built-in title overlay system.

The HS-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.

Built-in title overlay
Perfect lip sync

Build-in Intercom System

Built-in 8 Channel Intercom/Talkback system (4 x belt packs supplied).



Build in Intercom System
Build in Intercom System
Assignable Crosspoints

Assignable Crosspoints

The HS-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.

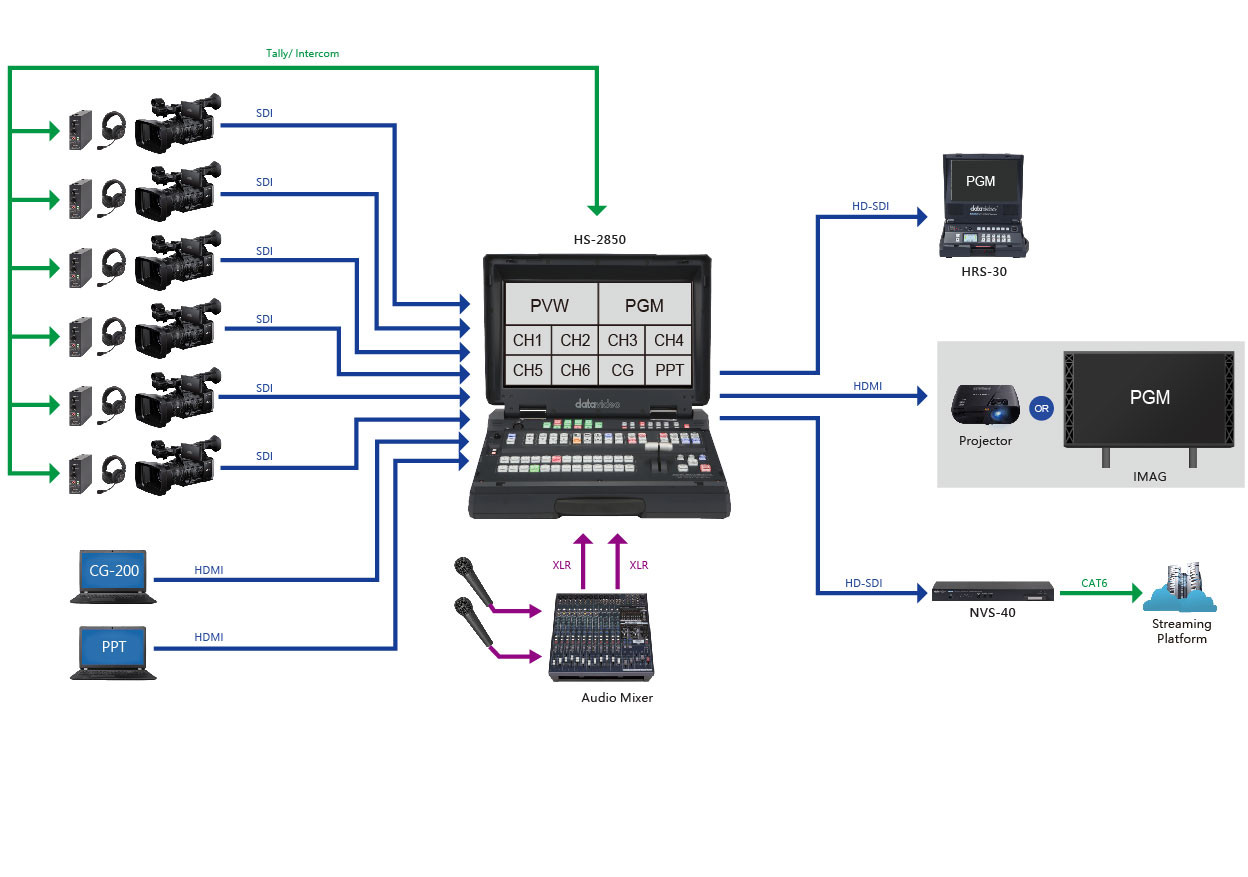

Supports 12 HD or SD Inputs in a Variety of Configurations

  • HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
  • SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI
Real-time clock featuring HH:MM:SS on the multi-screen

Real-time Clock Featuring HH:MM:SS on the Multi-screen

Count down counter MM:SS.

NEED MORE HELP?

Contact us to get more help!

HD/SD 12-Channel Portable Video Studio

COMPARE MORE PRODUCTS
Model Number
HS-2850-12
Video Standard
HD & SD
Video Format
1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz
Input Routable / Crosspoint
All 12, repeatable

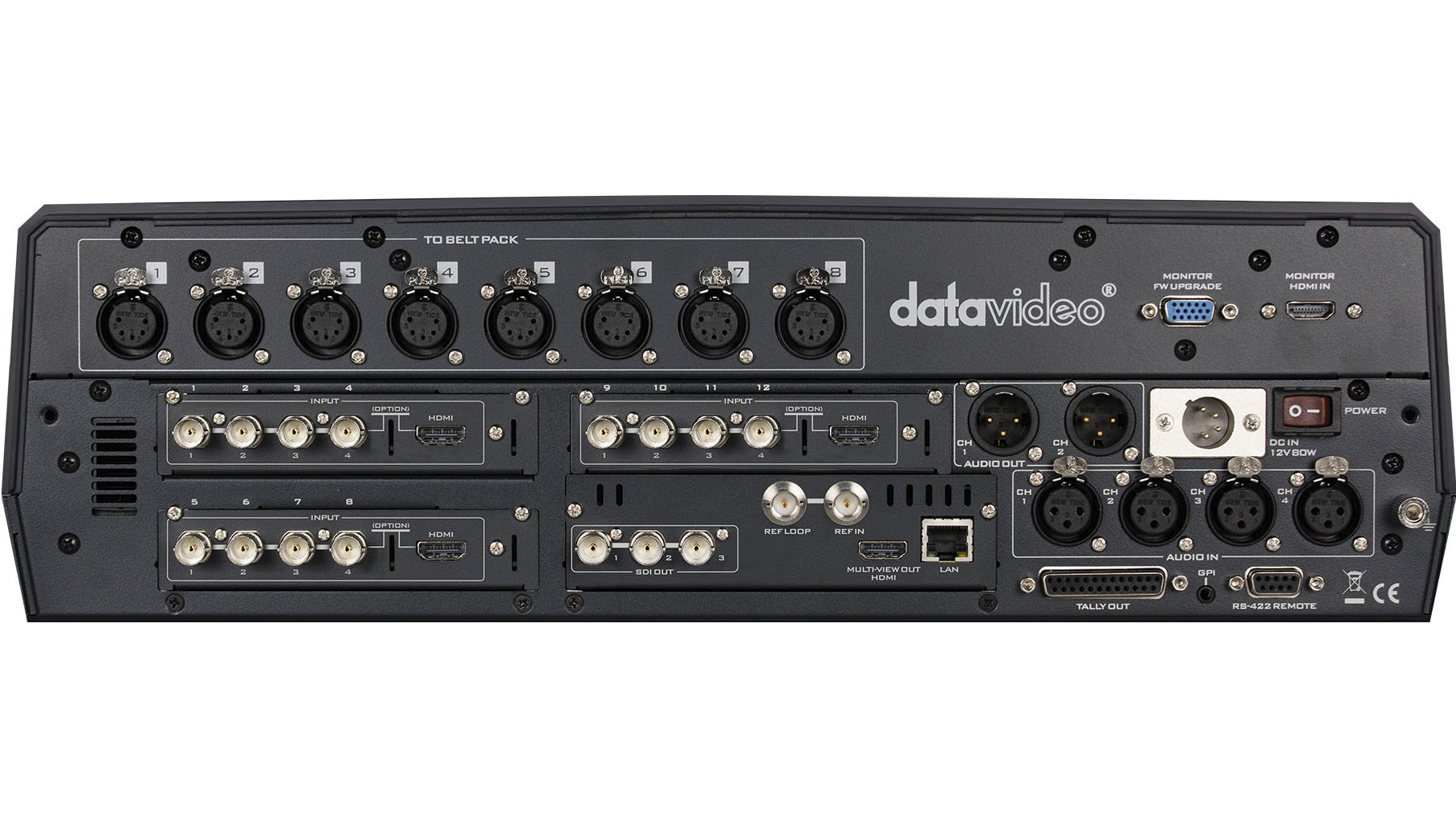

Video Input
Standard:
8x SDI, 2x HDMI
Max:
12x SDI, 3x HDMI
Computer Graphic Interface
Max 3 via HDMI
Down-converted Output
3x SDI
Video Output
3x SDI assignable:
PGM, PVW, AUX & Clean Out
1x HDMI assignable:
PGM & multi-view
Analogue Audio Input
4x Balanced XLR
Analogue Audio Output
2x Balanced XLR
Digital Embedded Audio Support
Input up to 16 channels,
Output 4 channels
Audio Delay Calibration
Up to 8 frames
A+V Switching
Yes
USK
----
DSK
2, support Lumakey & Linear key
(Key / Fill)
Picture in Picture
2
Logo Insertion
2 (or 1 logo + 1 clock)
Title Creator
Yes, CG-200 software free download
Built-in Audio Mixer
----
Built-in Monitor Display
17.3” HD TFT LED backlit, 1600x900 pix
Built-in Intercom & Tally
8 channels (4 belt-packs incl.)

Streaming

Streaming
----
Streaming Audio Encode
----
Streaming Protocol
----
Streaming Control
----
Recording File System
----
Recording File Format
----
Streaming & Recording Setting Control
----

Others

Special Features
Built in TC-200 CG interface
Dimension (LxWxH)
455 x 355 x 134 mm
Weight
18.7 Lbs (8.5 kg), Reinforce Plastic Case
Power
DC 12V, 6A
Operating Temp. Range
0~40 °C
What's in the Box
1 x HS-2850 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
1 x Tally light
4 x Velcro
