HBT-16

4K HDBaseT Receiver Box
HDBaseT
EUR €735.00
HDBaseT

4K HDBaseT Receiver Box

HBT-16
EUR €735.00
HDBaseT

Long distance 4K HDBaseT receiver that accepts 4K video, tally, control, and power over one ethernet cable

The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video.

Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.

With the 56V power connected to one end of the HBT-16 HDBaseT receiver

The HBT-16 will thus be able to power the transmitting device by PoE plus technology (PoE++).

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
Deep color

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.

Extends 2160P video transmission up to 100m.

Long distance 4K solution. Support up to 4K 50/59.94/60p and receives up to 4K2160P video from the transmitter.

HBT-16

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Support DVIP, RS-422, and RS-232 control protocols.

HBT-16 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display.

EDID
Dolby TrueHD & DTS Master audio support

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-16 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

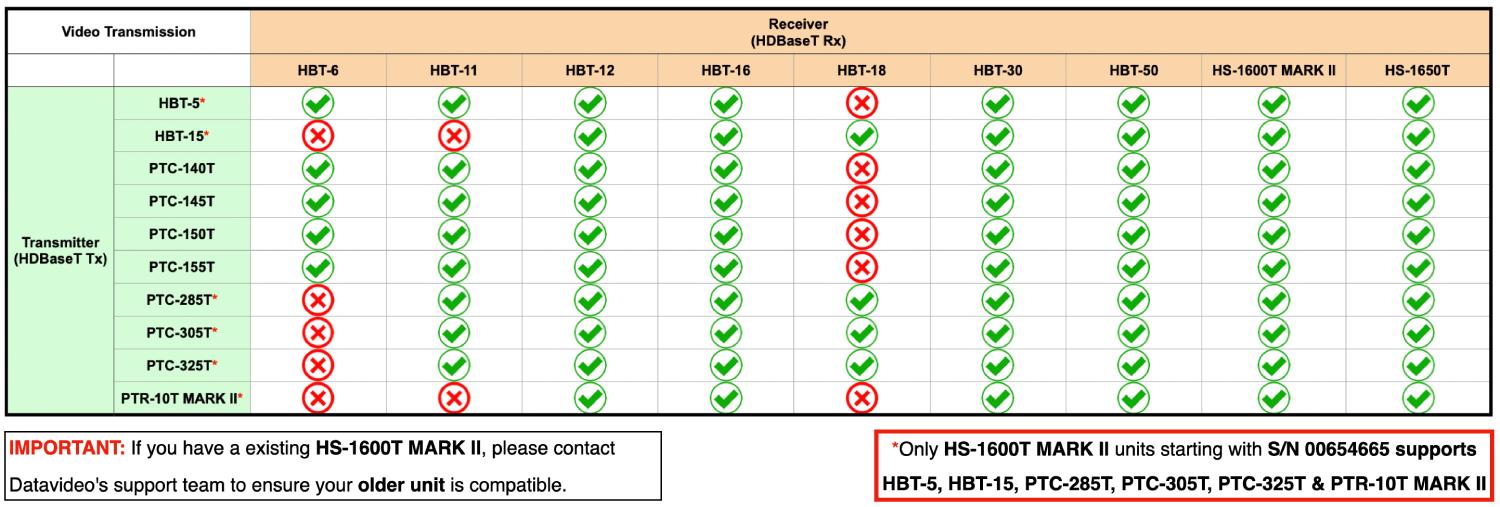

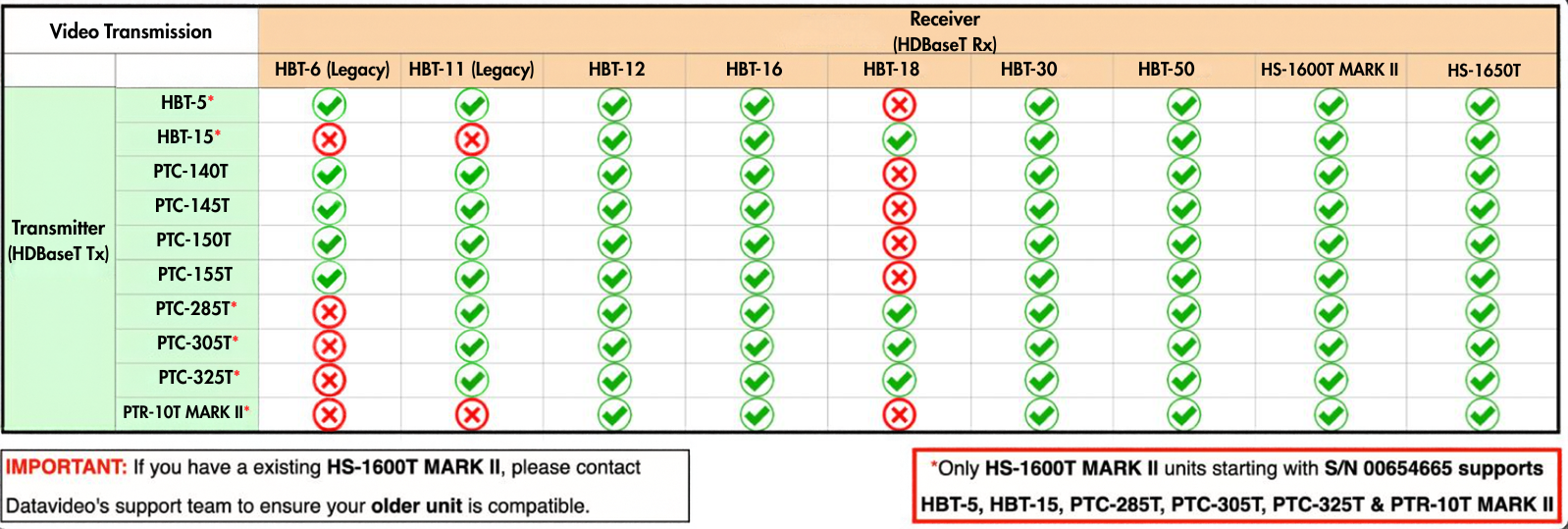

HDBaseT Compatibility List

The chart above shows the product's direct compatibility with other HDBaseT products.

What is HDBaseT ?

HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!

Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflows benefits that HDBaseT technology offers.

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

NEED MORE HELP?

   Contact us to get more help!

4K HDBaseT Receiver Box

COMPARE MORE PRODUCTS
Model Number
HBT-16
Video/Audio Input
HDBaseT RJ-45 x1
Video/Audio Output
HDMI 2.0 x1
Supported Video Format
2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process
4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth
Single-link 600MHz [18Gbps]
DVIP
RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x1
Power
DC IN: DC 56V
PoE Output
65W
HDBaseT Distance
2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance
HDMI 2.0
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround sound (up to 7.1ch)
Dimension (LxWxH)
157 x 85 x 46mm
Weight
450 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-16 main unit
1 x AC cord
1 x DC 56V power adaptor
