CB-24

SD 100m 3-in-1 Cable (SDI/ITC/CVBS)
Cables

SD 100m 3-in-1 Cable (SDI/ITC/CVBS)

CB-24
Features Media Workflow Specs Related Product Downloads

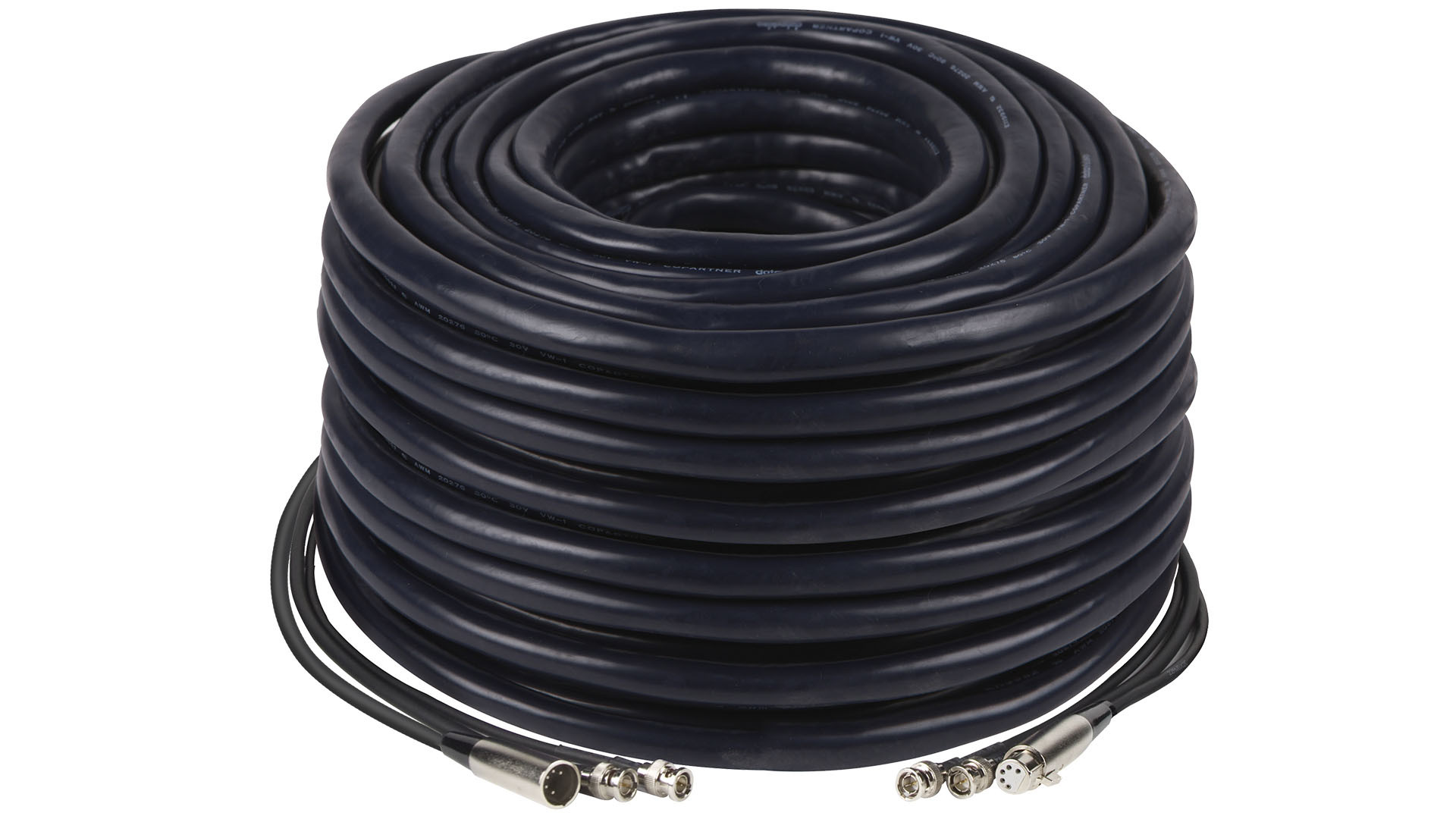

All in one cable for use w ith SD-SDI and Cvbs MVS systems. 18 AWG. Includes connectors for Intercom & Tally, Video SD-SDI & return video for Look Back monitor. Length: 100 meter

PRODUCT MEDIA

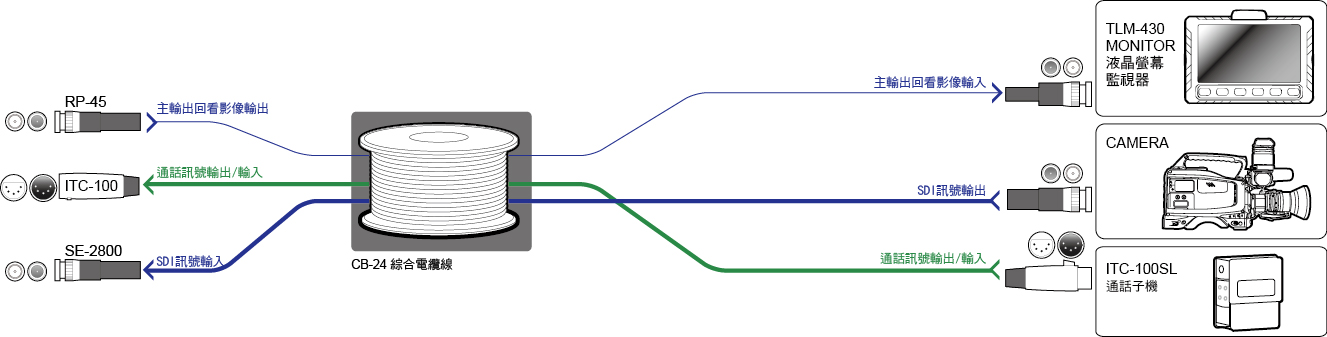

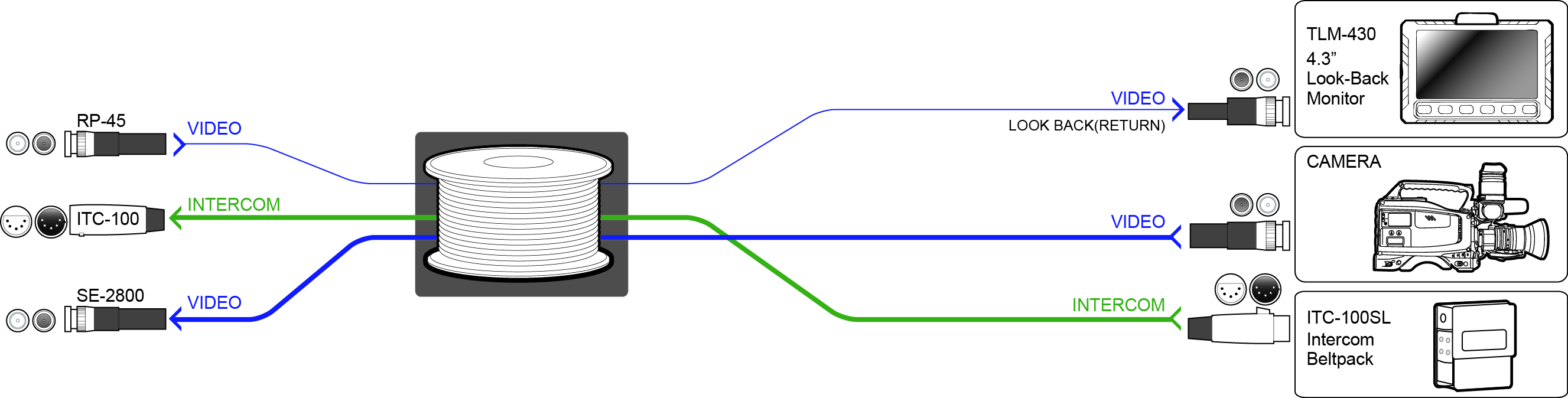

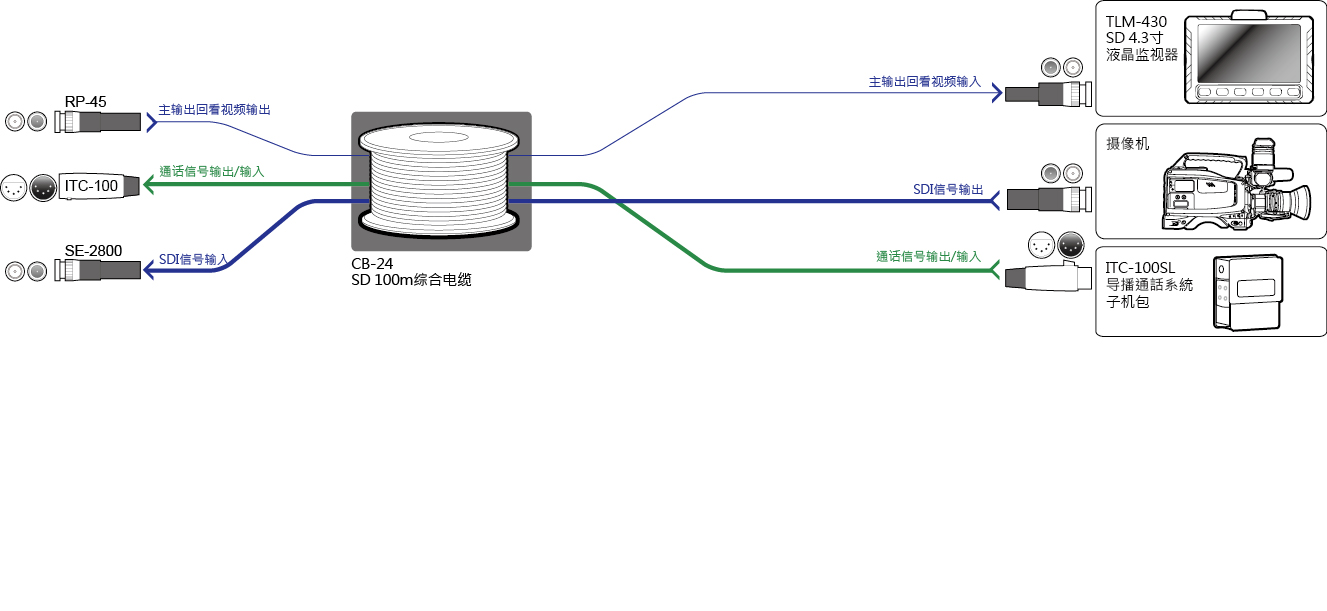

PRODUCT WORKFLOW


SD 100m 3-in-1 Cable (SDI/ITC/CVBS)

COMPARE MORE PRODUCTS
Model Number
CB-24
Interface
1 x 5-pin XLR ITC/Tally cable
1 x 75Ω BNC for SD-SDI video
1 x 75Ω BNC for CV return video
Length
100m
Suggest Repeater
VP-605H
Applications
Intercom & Tally
DC Power 12~48V
Up to 1080i video transmission (SD-SDI)
Return video for Look Back monitor
Datavideo OBV or Mobile Studio
Cable Diameter
---
Bend Radius
---
Operating Temp
0~55 °C
Storage Temp
-20~80 °C
